ATEN CM1164A 4-Port DVI-D Multi-View KVMP Switch, 1920 × 1200 @ 60Hz, 9.7W

$2,142

ATEN CM1164A, 1920 x 1200 pixels, Full HD, Rack mounting, 9.7 W, Black

Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)

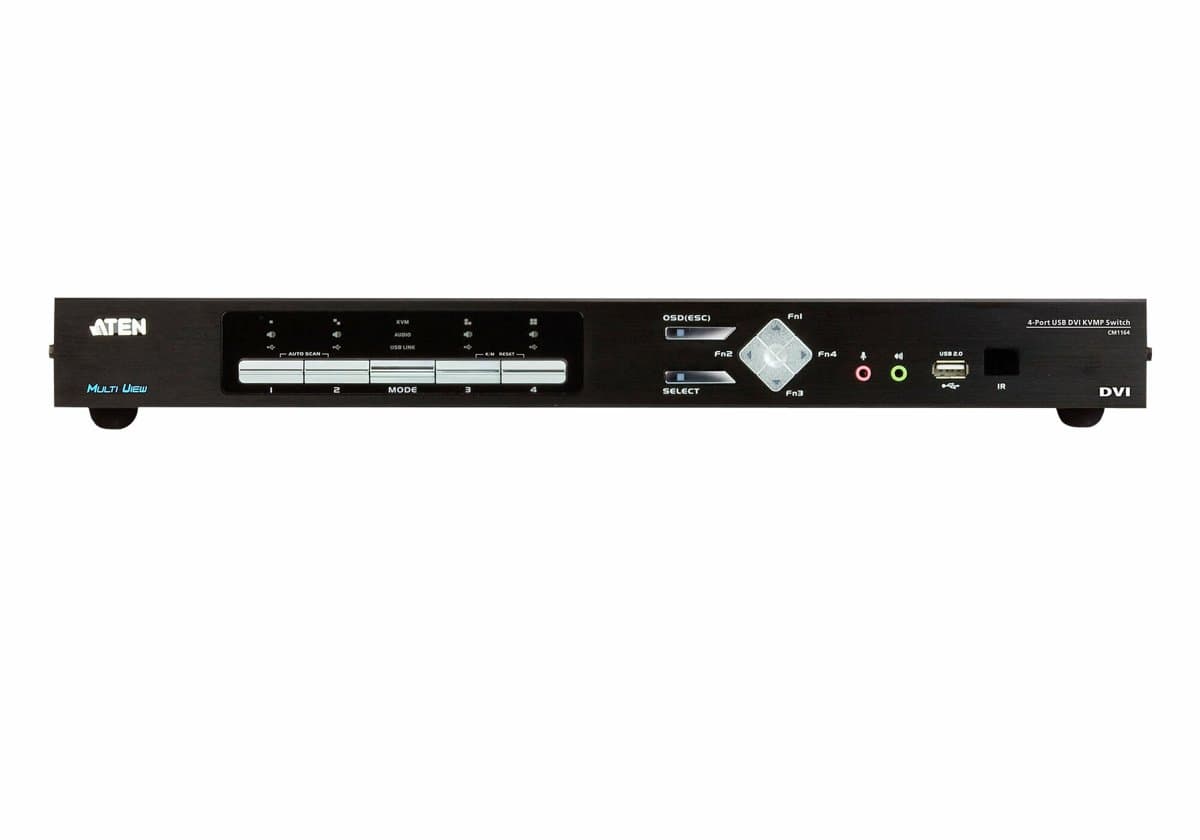

System configuration via front panel, OSD, IR Remote – display mode and port selection
Supports superior video quality – Up to 1920 x 1200; YCbCr 4:2:2
Easily resize and / or reposition any PiP or PbP to suit users’ viewing needs
DCC (Daisy Chain Control) — Controls up to 3 additional CM1164A units from a single console
Cascade up to 2 levels — Controls up to 16 computers (with up to 4 x 4 Multi-view mode)

In stock · 5 units · Ships tomorrow

◇ Shipping calculated at checkout

↩ 30-day returns · no questions asked

⊡ Sourced via Ingram Micro · ships from US distribution

About this product

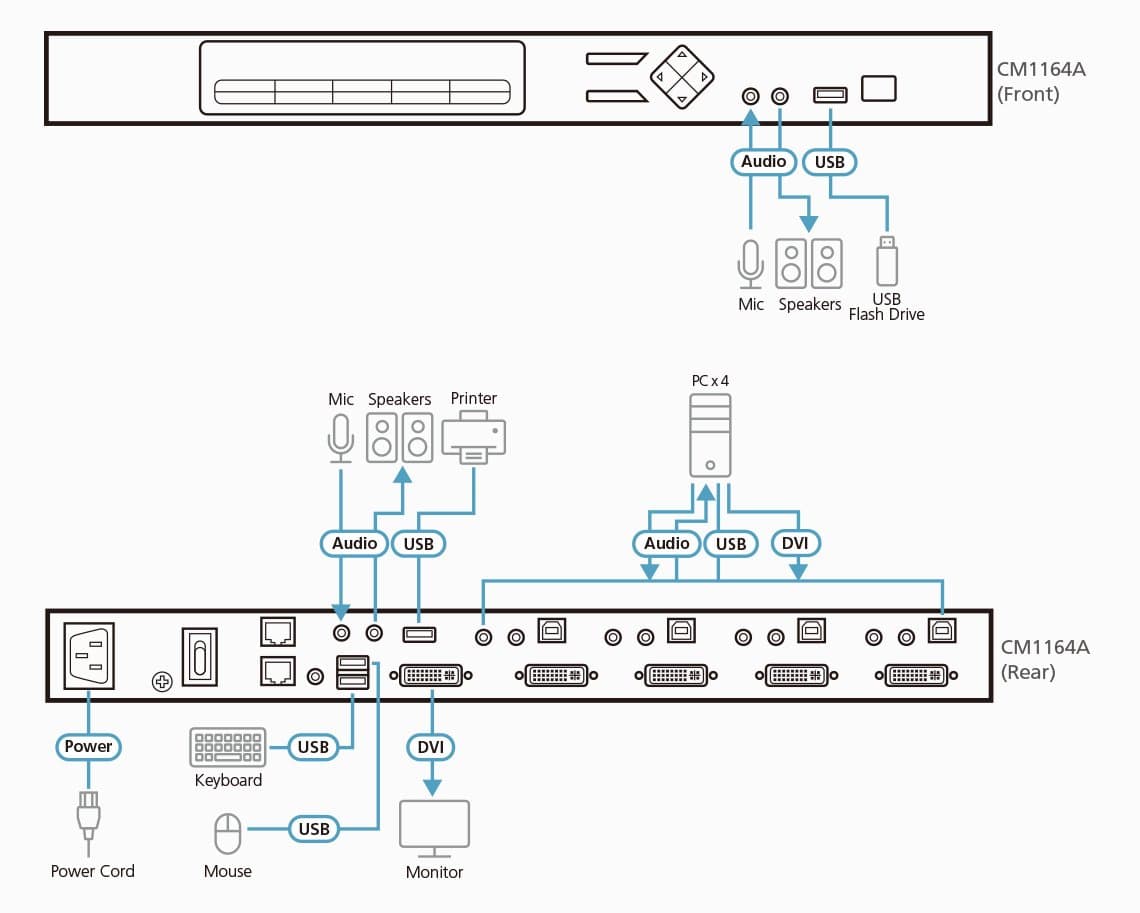

ATEN CM1164A 4-Port USB DVI Multi-View KVMPTM Switch improves the operational efficiency of intensive monitoring applications. With limited screen, to allow users to manage the data more efficiently, up to 16 video sources can be selected, switched and displayed at the same time with independent keyboard, mouse control. The CM1164A provides users a real-time monitoring functionality by combining a 4-port DVI-D switch with a 2-port USB hub and providing the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), Picture on Picture (PoP), and Full Screen mode.

Featuring Boundless Switching, the CM1164A allows users to simply move the mouse cursor across windows to switch to other video sources. This makes it easier to instantly access and control the target computer.

Incorporating Daisy Chain Control (DCC) capability, users are allowed to control up to 3 additional CM1164A units via a single console. In addition, CM1164A can be cascaded up to 2 levels to reach the maximum of 16 video sources simultaneously displayed on a display.

Engineered to meet the ever-increasing demand for multi-view functionality, the CM1164A is specifically designed for where real-time monitoring is needed such as aviation industry, financial trading, and medical application.
