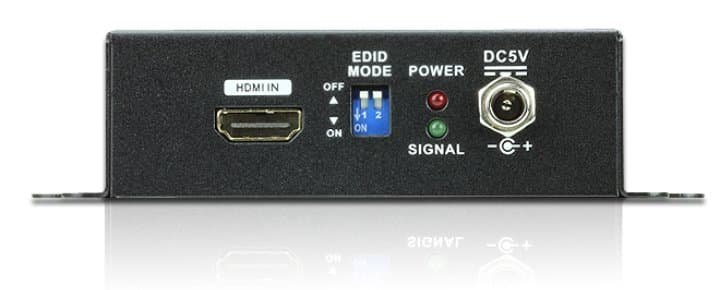

ATEN VC840 HDMI to 3G/HD/SD-SDI Converter, 2 SDI Outputs, 5V, 300m Range

The VC840 HDMI to 3G/HD/SD SDI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC840 provides 2 low jitter SDI outputs for dual display. The VC840 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.

- Converts an HDMI input signal to 3G/HD/SD-SDI formats in real time while avoiding transformation loss for both audio and video signals
- Supports additional analog stereo audio and coaxial digital audio
- HDMI (Deep Color)
- LED indication of power and signal status
- Supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6
- Supported SDI formats:
- SD-SDI (SMPTE 259M, up to 270Mbps)
- HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
- 3G-SDI (SMPTE 424M, 425M level A, up to 2.97Gbps)
- Video Support:
- 525i@59.96, 625i@50
- 720p@50/59.94/60
- 1080i@50/59.94/60
- 1080p@23.97/24/25/29.97/30/50/59.94/60
- 2048 x 1080
- Supports 8 audio channels @ 48kHz rate
- Offers 2 low-jitter SDI outputs for dual display
- Features automatic detection of 3G/HD/SD-SDI signals
- Reclocking SDI signals for cascading and thus longer transmission
- Locking power connector for secure communications
- Selectable EDID settings and EDID learning mode
