ATEN TECHNOLOGIES · IMUN5069

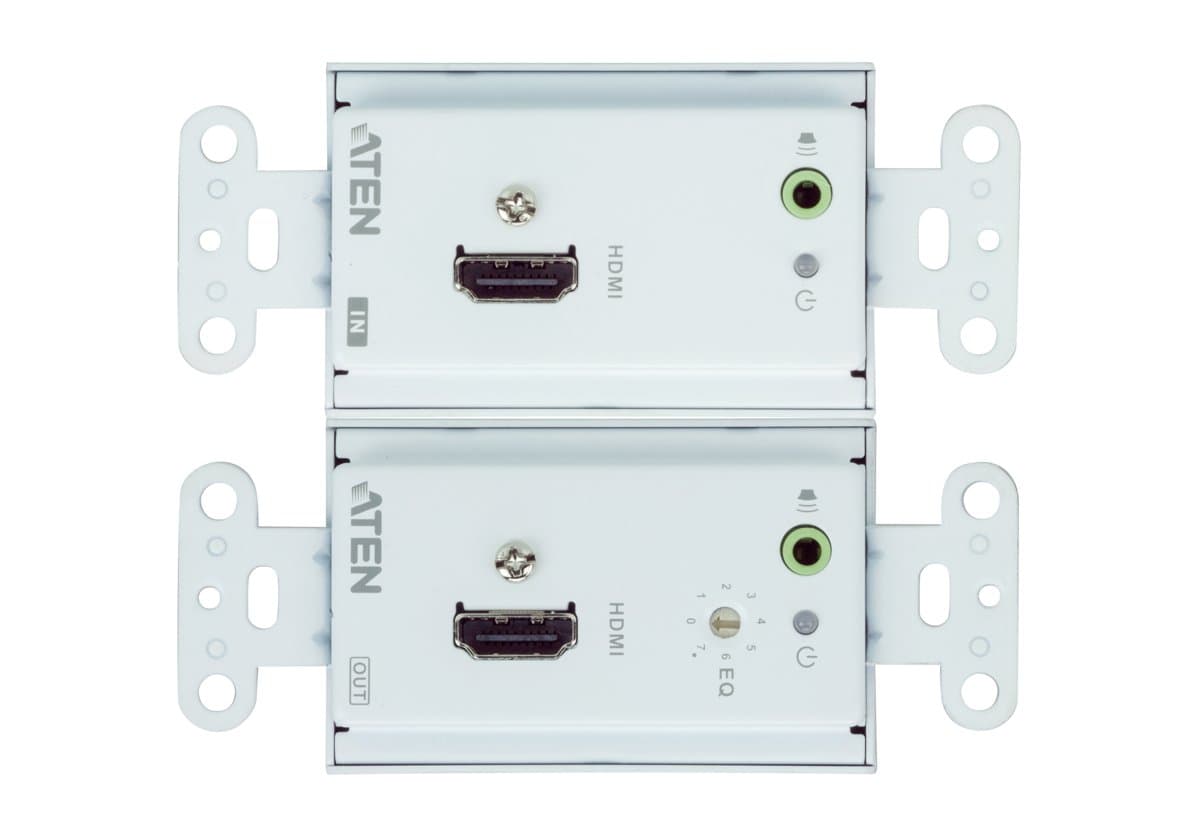

ATEN VE806 HDMI Over Cat 5e Wall Plate, 1920×1080, 60m, 2.9W
$158
ATEN VE806, 1920 x 1080 pixels, AV transmitter & receiver, White

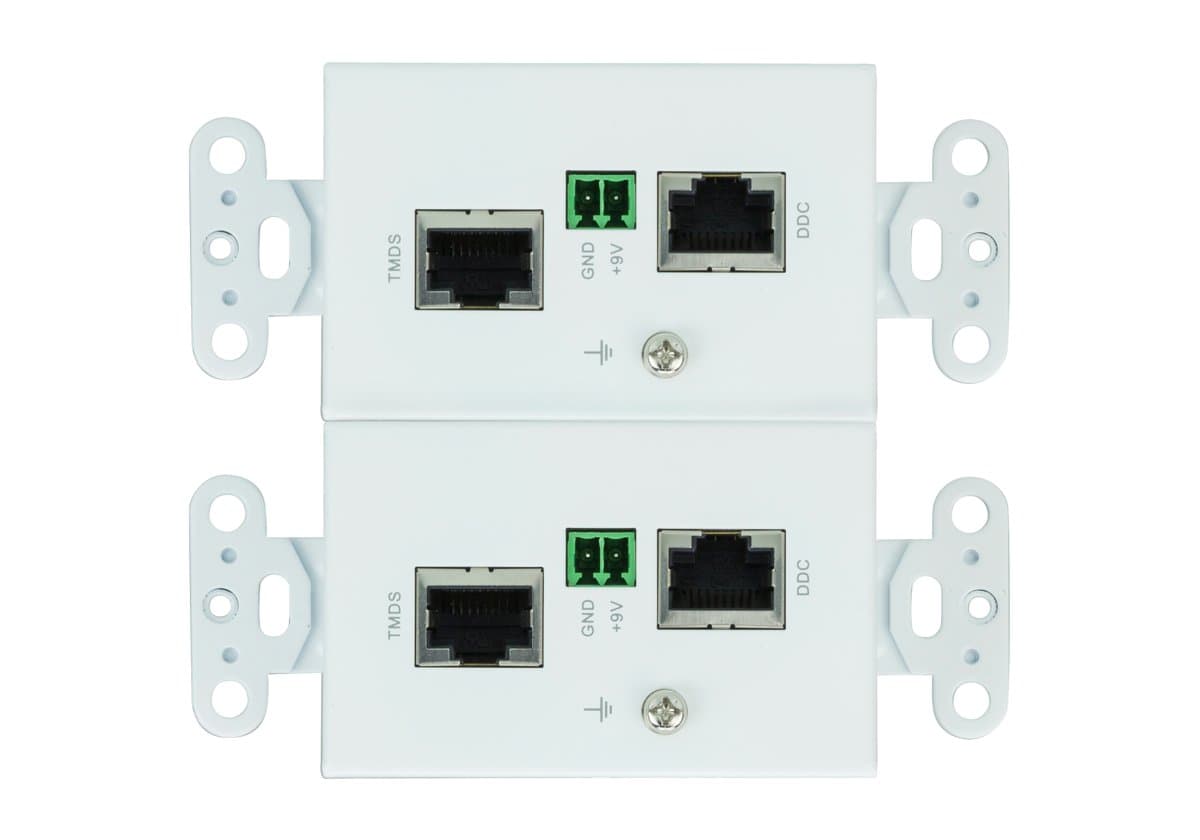

- Uses two Cat 5e cables to connect the local and remote units - one to transmit video and audio signal, and the other one is used for power signal transmission, real EDID bypass, and HDCP key authentication*
- Remotely powered from either the Transmitter or Receiver side **
- Extends the distance between HDMI source and HDMI display
- Superior video quality – up to 1080p@60Hz (40m), 1080i@60Hz (60m)
- HDMI (3D, Deep Color); HDCP Compatible
- 8 segment equalization adjustment switch optimizes display quality
In stock · 10 units · Ships tomorrow
About this product
The VE806 HDMI Over Cat 5 Extender Wall Plate extends HDMI and audio signals up to 60m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE806 combination can further extend the distance or multiply sources/displays.
The VE806 can be powered at either the Transmitter or Receiver side, and a second Cat 5e cable is used for power signal transmission, real EDID bypass, and HDCP key authentication. The VE806’s compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.
The VE806 can be powered at either the Transmitter or Receiver side, and a second Cat 5e cable is used for power signal transmission, real EDID bypass, and HDCP key authentication. The VE806’s compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.
Specifications
Connectivity
Cable Type
Cat 5e
Performance
Extension Distance
60 m m
Physical
Dimensions (W×D×H)
44 × 104 × 40 mm
Weight
170 g g
Power
Power Consumption
2.9 W W
Operating Voltage
9 V V
Video
Max Resolution
1920 × 1080
Video Modes
1080i, 1080p
Product details
Brand
ATEN TECHNOLOGIES
Vendor
ATEN TECHNOLOGIES
Ingram Part Number
UN5069
UPC
0672792004667
MSRP
$155
Stock
10 units
