StarTech.com · IM1A1773

StarTech 2-Port, Mini DisplayPort MST Hub, Support Dual 4K 30Hz

StarTech.com 2-Port Multi Monitor Adapter - Mini DisplayPort to 2x DisplayPort MST Hub - Dual 4K 30Hz - Video Splitter for Extended Desktop Mode on Windows PCs Only - mDP 1.2 to 2x DP, Mini DisplayPort, 2x DisplayPort, 3840 x 2160 pixels, Black, Plastic, 4K Ultra HD

MULTI MONITOR ADAPTER FOR WINDOWS: Mini DisplayPort to Dual DisplayPort MST hub drives up to two DP displays in extended or duplicate mode using a Mini DP port on Windows desktop PCs or laptops / Not compatible with macOS
DISPLAY RESOLUTION: Dual monitor mDP to DP MST hub supports resolutions up to 4K 30Hz (UHD) or 1080p 60Hz on both monitors, or can support two ultrawide displays up to 3440x1440 60Hz
COMPATIBILITY: 2-Port Mini DP to DisplayPort MST video splitter works with laptops, computers or desktop graphics cards / Requires host system with DP 1.2/HBR2/MST or later from HP, Dell & Lenovo and AMD, Nvidia & Intel video cards
INCREASE PRODUCTIVITY: Increase productivity by extending your desktop at your workstation in the office/home office / MST technology uses your GPU/video card performance to deliver uncompressed video and use minimal system resources
EASY TO USE: Multiple monitor adapter natively supports 2x DP screens; Works with Windows only and provides an easy driverless setup

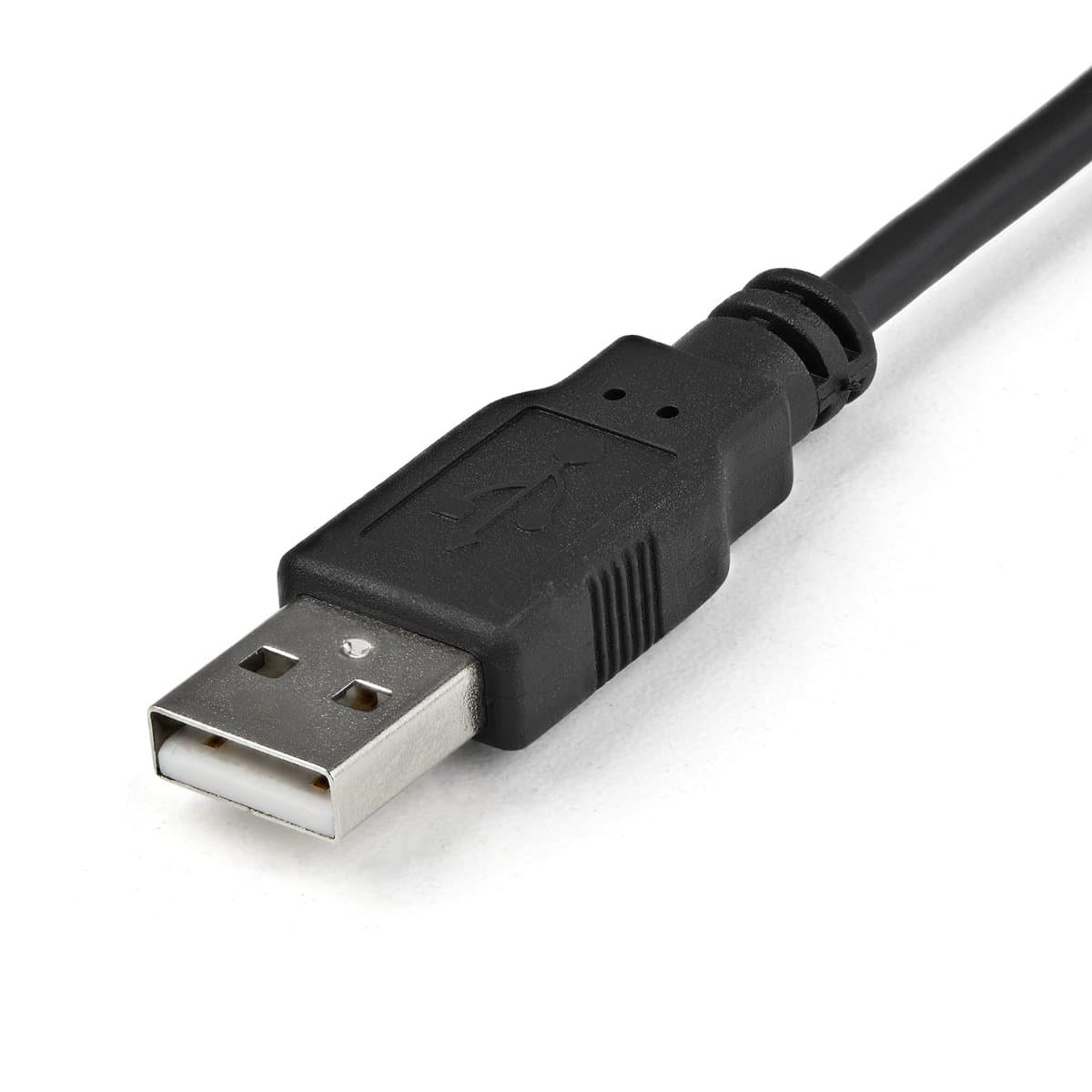

CONVENIENCE: MST (multi-stream transport) hub is equipped with built-in 7.5"" (19cm) cable for video (Mini DisplayPort) and power (USB bus-powered) / Supports LPCM digital audi

Only 3 left · order soon

◇ Shipping calculated at checkout

↩ 30-day returns · no questions asked

⊡ Sourced via Ingram Micro · ships from US distribution

About this product

Use this adapter to connect two independent displays to a single mDP 1.2 port

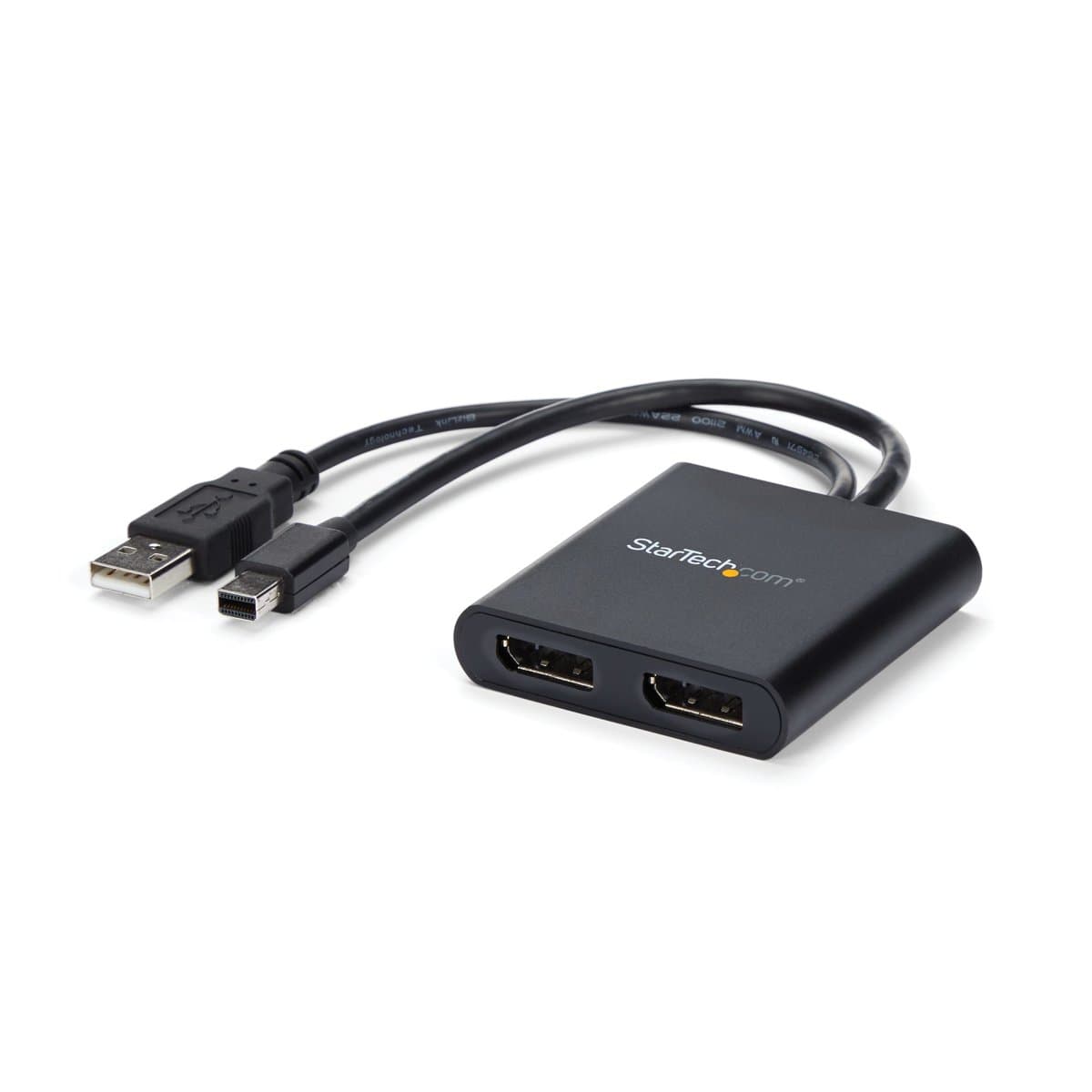

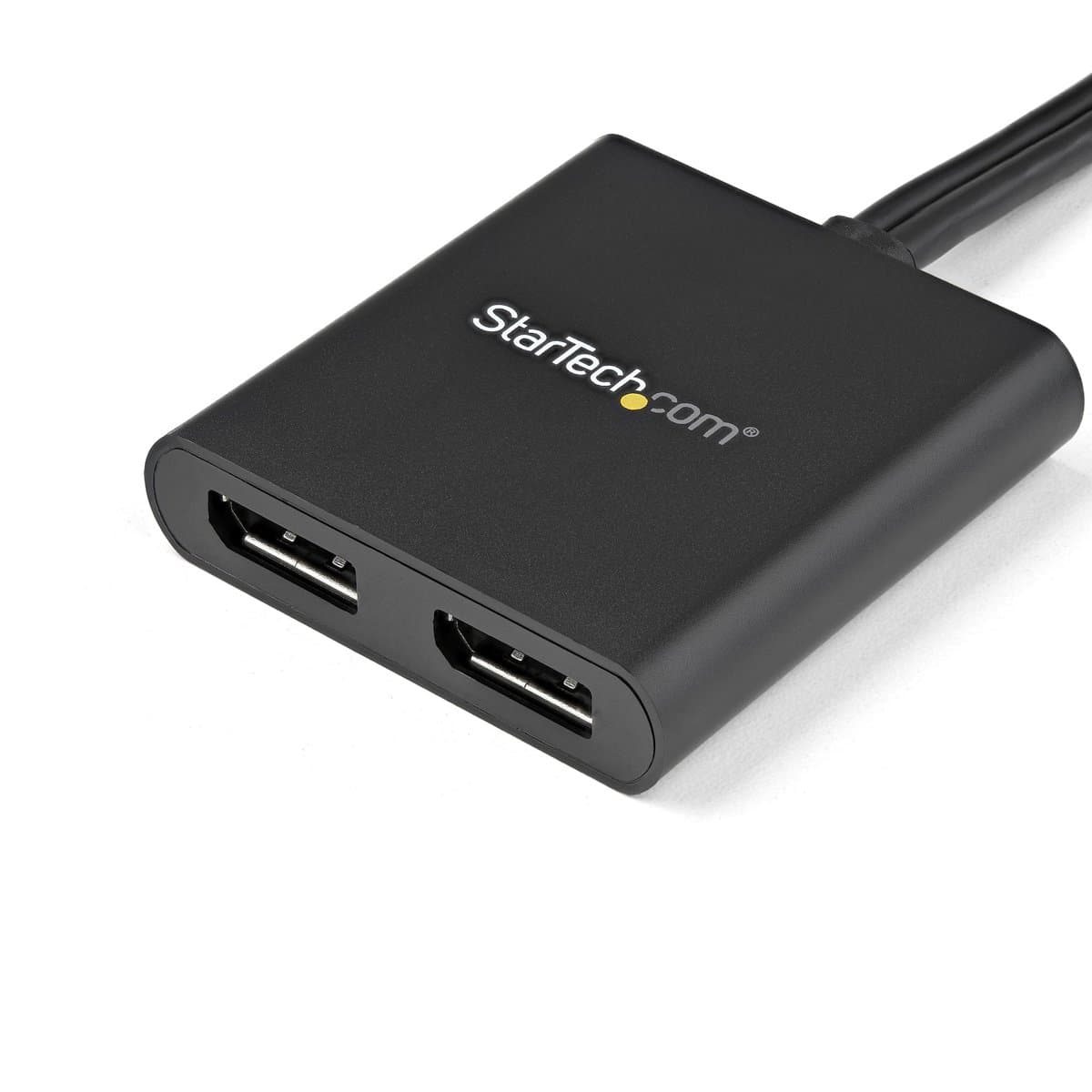

This MST hub lets you connect two DisplayPort monitors to your Mini DisplayPort computer. MST works on any Windows® device that supports DisplayPort 1.2, such as models of the Lenovo™ Think Pad® and Microsoft® Surface™. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter. The MST hub is USB powered, so the only thing you'll need to operate the hub is your computer.

Increase your productivity with multiple monitors

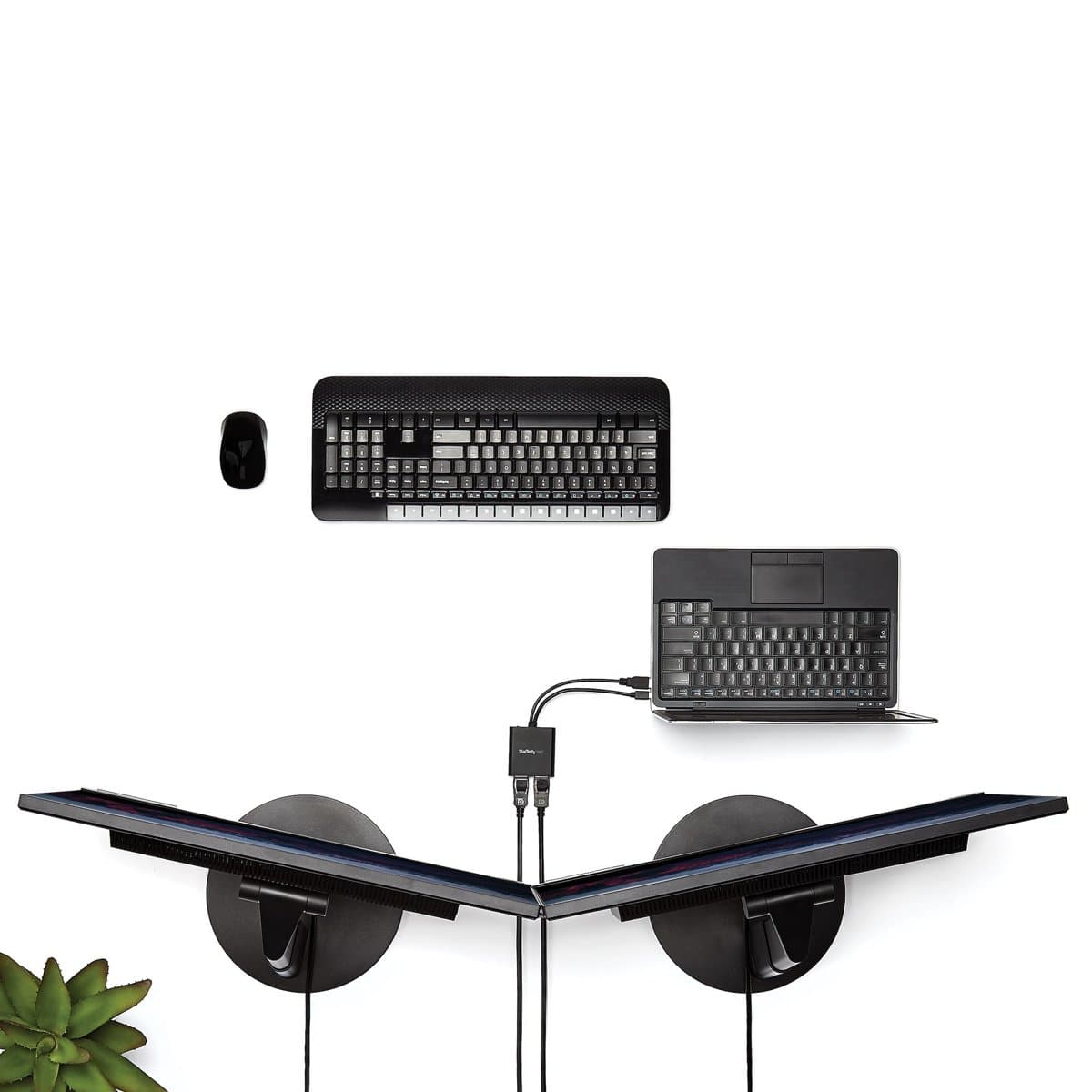

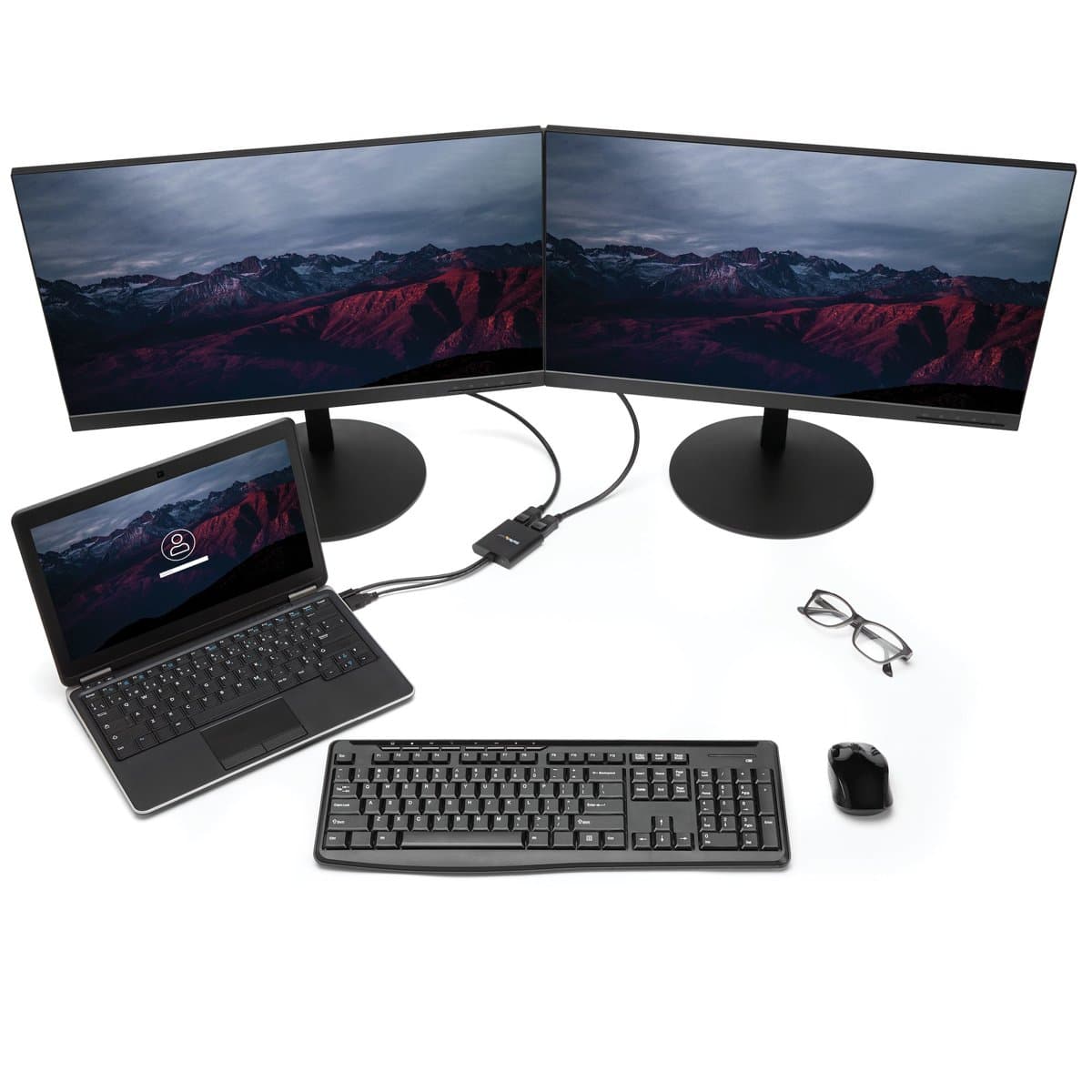

The newest generations of laptops are more portable than ever, unfortunately this means you’re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect two independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

Astonishing picture quality that won’t drain your system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.

Works with any monitor, television or projector

With this MST hub, you can use separate mDP video adapters to connect HDMI, VGA or DVI displays, for compatibility with all of your existing monitors. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.

The MSTMDP122DP has been certified by Microsoft and tested for compatibility with your Microsoft Surface Pro 3, Surface Pro 4 and Surface Book and is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Download datasheet (PDF)Manufacturer product page
