StarTech.com · IMJU0689

StarTech 4-Port RJ45 Gigabit OCP 3.0 Network Card, 1 Gbps, Intel I350-AM4, PCIe 3.0

StarTech.com 4-Port RJ45 Gigabit OCP 3.0 Server Network Card w/Intel® I350-AM4, SFF 4C+ Compatible, Multi-Speed Ethernet, PCIe 3.0, LAN Transformer, NIC w/PXE/9K, Internal, Wired, OCP 3.0, Ethernet, 1000 Mbit/s, Black, Green

OCP 3.0 NETWORK CARD: 1Gbps Network Interface Card w/4x RJ45 Ethernet Ports; Intel® I350-AM4 Ethernet Controller; Leverage existing Cat5e/Cat6 cabling (or better) up to 100m; Adheres to PCI Express 3.0; EEE compatible; Ideal for various scenarios, from virtualization to cloud computing
OCP INTERFACE: Network adapter card uses the OCP (Open Compute Project) 3.0 port (168-Pin 4C+) developed for servers to reduce size, increase port density, and provide hot-swappable capabilities for simplified maintenance and upgrades
COMPATIBILITY: LAN adapter is SFF 4C+ compatible; Variable speed options (10/100/1000 Mbps) with auto-negotiation; Removable pull-tab bracket; NIC is compatible with Windows Server, VMware, and Linux; Supports Single Root I/O Virtualization (SR-IOV)
IT MANAGEABILITY: Supports Intel® vPro® for remote management and troubleshooting; PXE boot enabled for faster deployment/updates; 9K jumbo frames for reduced packet overhead; Remotely boot a system using WoL; VLAN support for improved traffic management
BUILD QUALITY: Gigabit PCIe card features a built-in heatsink to keep the network chip running cool, LED indicators for link status/speed, LAN transformers to maintain signal quality and reduced EMI for reliable communication up to 100m even with Cat5e

In stock · 44 units · Ships tomorrow

◇ Shipping calculated at checkout

↩ 30-day returns · no questions asked

⊡ Sourced via Ingram Micro · ships from US distribution

About this product

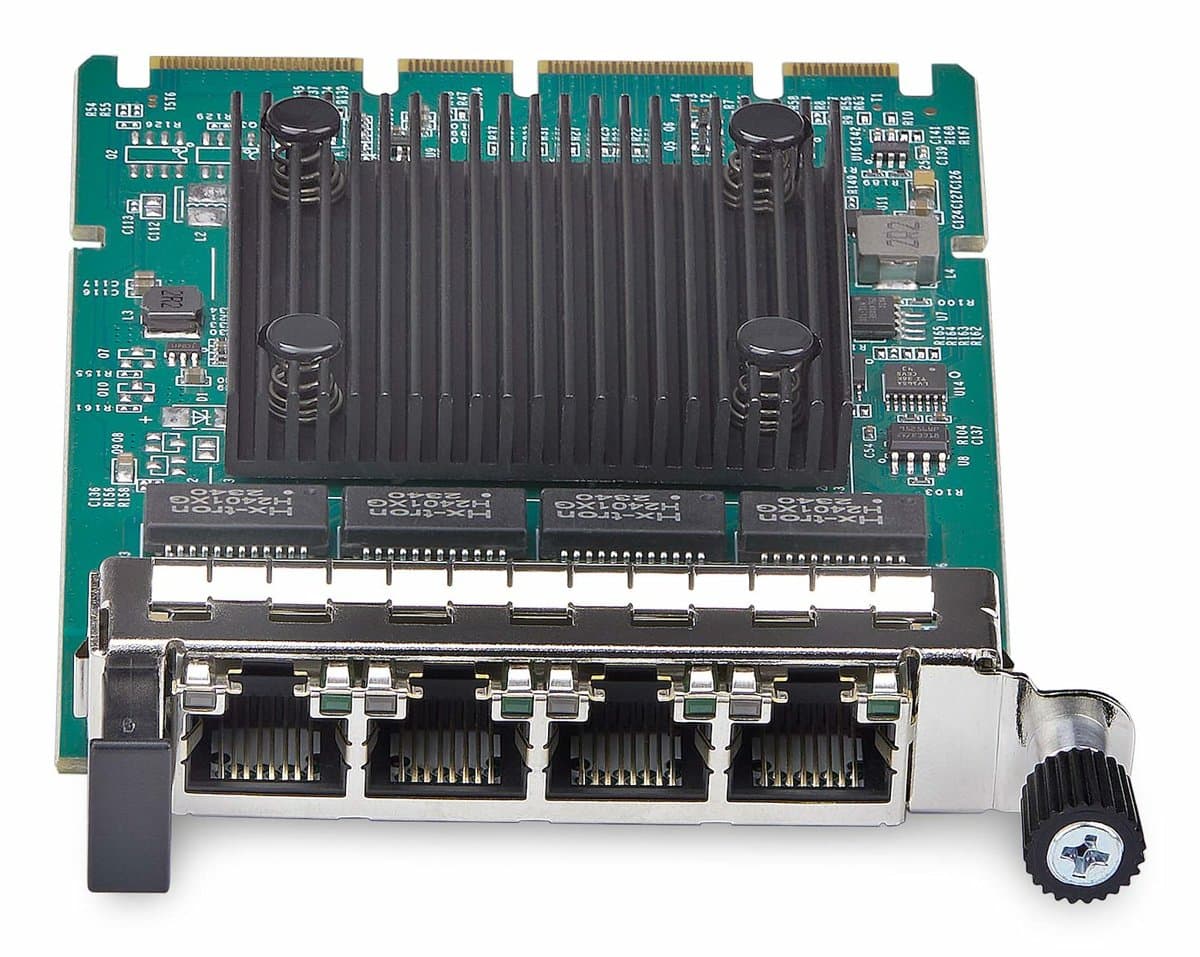

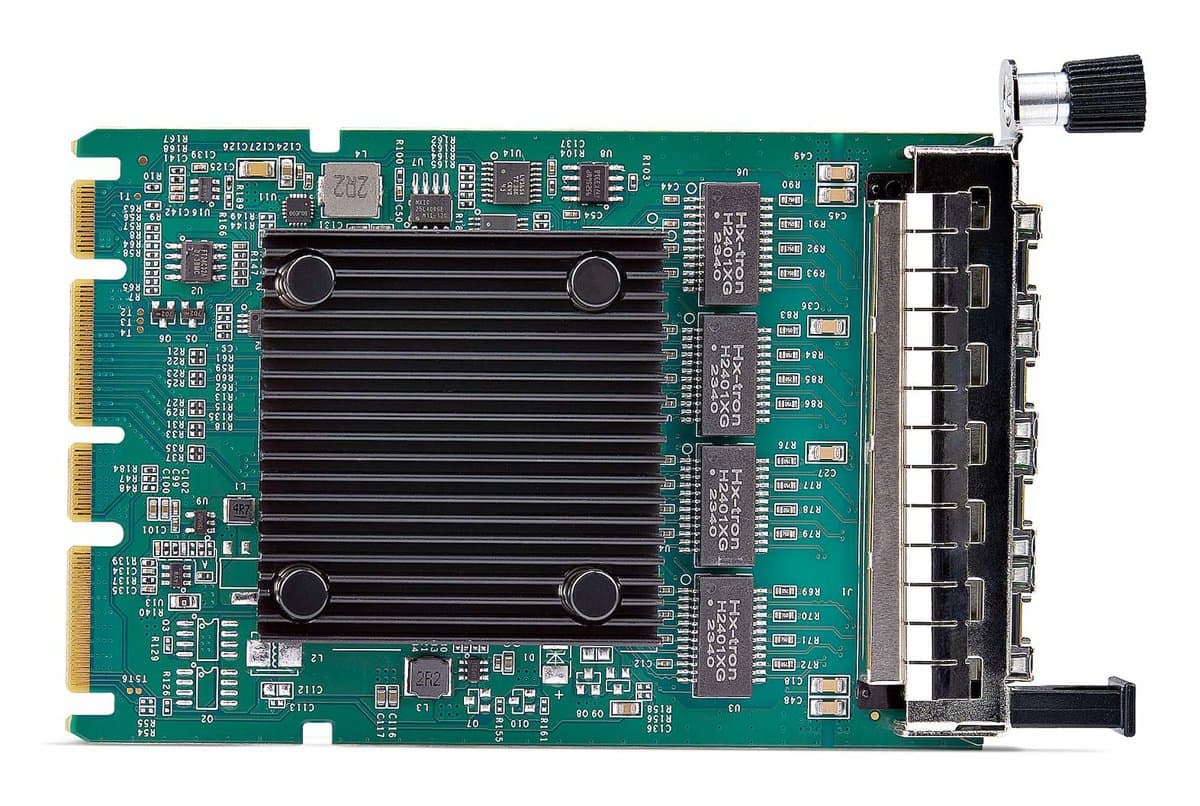

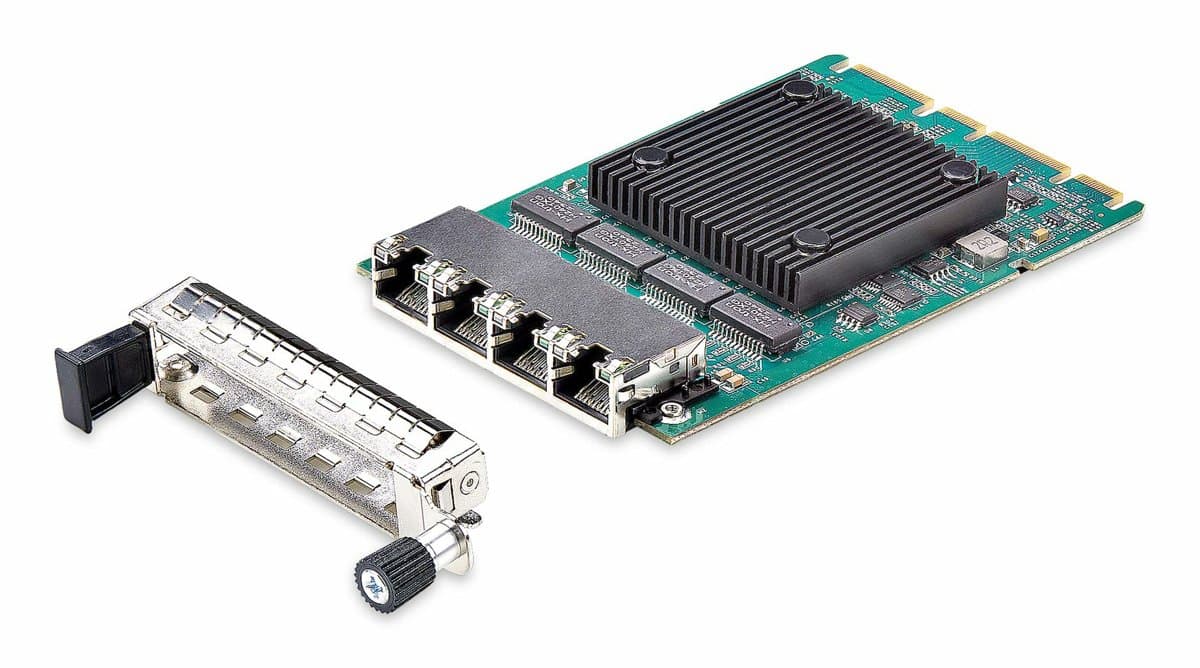

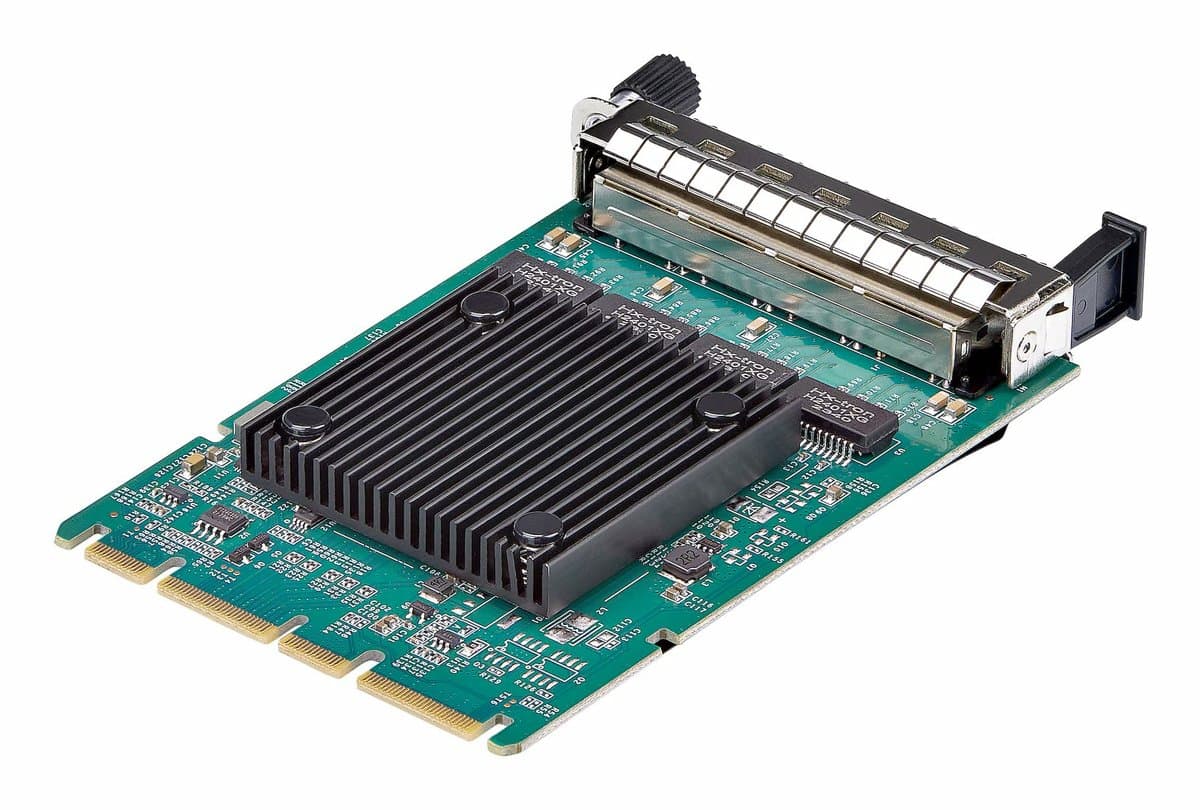

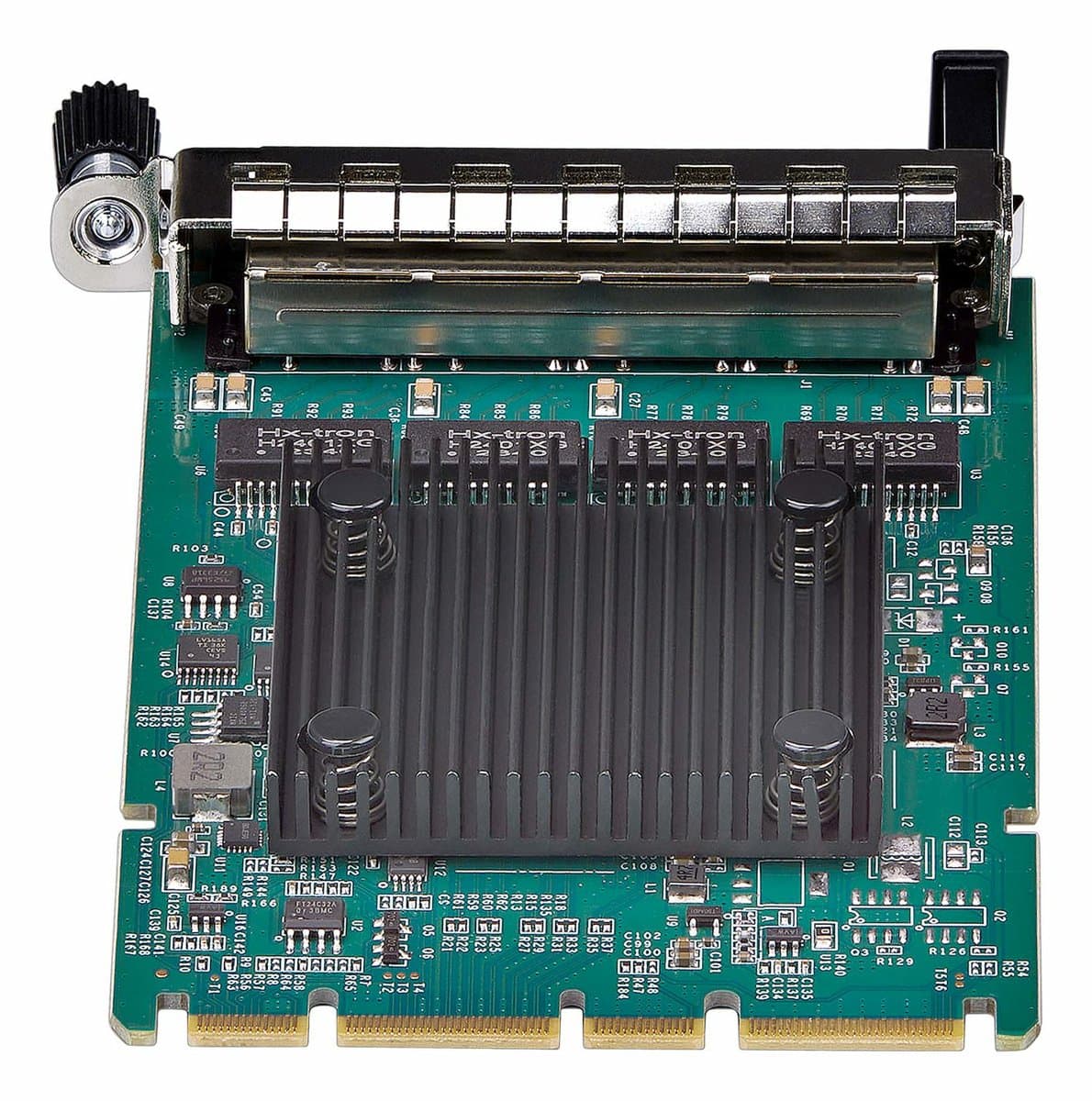

Enhance a server's connectivity with this OCP 3.0 quad-port network adapter card featuring Intel® I350 chip

This 4-port RJ45 1Gbps OCP 3.0 Network Interface Card (NIC) features an Intel® i350-AM4 Ethernet Controller, enhancing performance and data integrity. The Ethernet card adheres to OCP 3.0 standards and ensures broad compatibility, making it an ideal solution for reliable network connectivity and robust data transfer capabilities.

Optimized Network Efficiency

Leverage existing Cat5e/Cat6 cabling (or better) up to 100m to maximize existing networks and equipment. The NIC supports variable speed options (10/100/1000 Mbps) with auto-negotiation and 9K jumbo frames to reduce packet overhead, reducing network slowdowns.

Enhanced Hardware

This network adapter leverages the OCP 3.0 standard, a server-specific innovation, that optimizes size and port density while enabling simplified installation, maintenance, and upgrades of Field Replaceable Units (FRUs) through hot swapping. It's designed for the SFF form factor, aligning with W1 4C+ standards. The network adapter is compatible with both TSFF and SFF systems expanding compatibility with different server types.

Advanced Features

The Ethernet card supports Intel® vPro™ for remote management and troubleshooting, PXE boot for expedited deployment or updates, and VLAN support for improved traffic management and reduced network congestion. The NIC is compatible with Windows Server, VMware, and Linux and supports Single Root I/O Virtualization (SR-IOV) to enhance virtual machines' performance with minimal overhead. LAN transformers are included to maintain signal quality and reduce EMI, ensuring reliable communication up to 100m even when using Cat5e.

The StarTech.com Advantage

Download datasheet (PDF)Manufacturer product page
