StarTech.com · IMKY5964

StarTech 4-Port Serial to Ethernet Adapter, RS232 DB9, 100–240V Input, DIN Rail Mountable

StarTech.com 4-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter, IEEE 802.3i, IEEE 802.3u, 0 - 60 °C, -20 - 75 °C, 5 - 95%, 179 mm, 60 mm

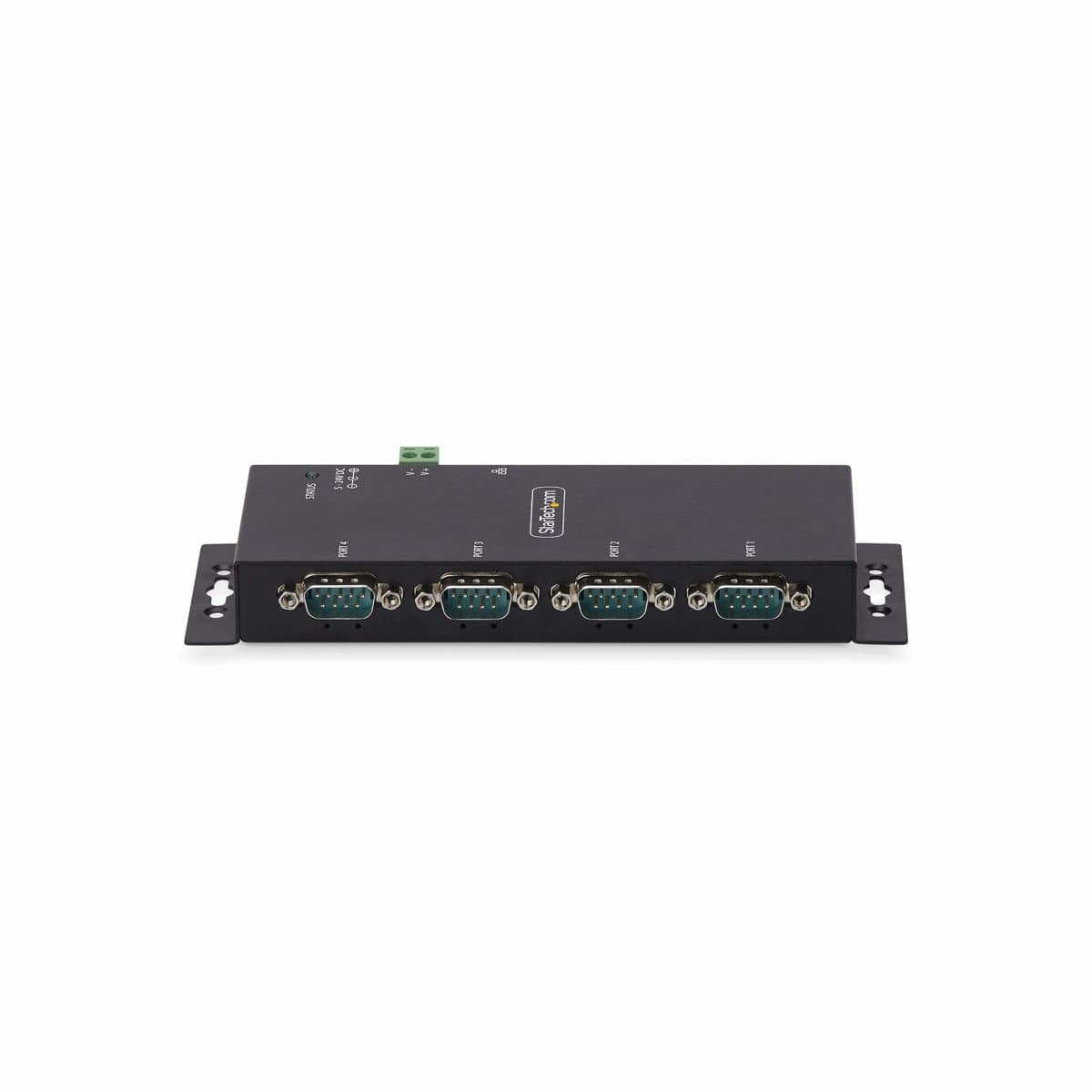

FOUR PORT SERIAL TO IP CONVERTER: Connect different RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial port supports up to 921.6Kbps; TAA Compliant
UNIFIED ECOSYSTEM EXPERIENCE: All our device servers share the same management software and Web UI; View/manage individual devices with a common UI on any OS; Windows software to set up virtual com ports and view/manage all device servers on the network
VERSATILE CONFIGURATIONS: RJ45 LAN to RS232 converter support TCP client/server mode to enable serial tunneling between two device servers over a LAN; Export/import settings, custom naming / location, admin password protection, and upgradeable firmware
ETHERNET AND POWER OPTIONS: Single 10/100Mbps RJ45 port w/auto-negotiation; Serial device server operates over Telnet (RFC2217)/UDP/TCP; Serial to LAN converter includes a power adapter & supports 5V over pin 9 for serial devices
RUGGED AND MOUNTABLE ENCLOSURE: All-metal housing ensures durability in harsh conditions; Supports Level-4 ESD protection (15kV air/8kV contact); Includes the necessary wall and DIN rail mounting hardware; Dimensions 7x2.3x0.9in (178x59.4x23mm);
SERIAL TO IP CONVERTER OPTIONS: Our family of device servers includes the following options: I13-SERIAL-ETHERNET (1 Port), I13P-SERIAL-ETHERNET (1 Port w/ PoE), I23-SERIAL-ETHERNET (2 Port), and I43-SERIAL-ETHERNET (4 Port)

In stock · 173 units · Ships tomorrow

◇ Shipping calculated at checkout

↩ 30-day returns · no questions asked

⊡ Sourced via Ingram Micro · ships from US distribution

About this product

Streamline RS-232 connectivity for serial device management over IP

This 4-port serial to IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network.

Configuration and Management

The DB9 to Ethernet Adapter family shares the same Windows Virtual COM Port software and Web User Interface (WebUI) for a unified experience. Users can employ the Windows software to view and manage all device servers within a network and to set up virtual COM ports. Alternatively, the WebUI provides a platform-independent method, allowing users to access and configure these device servers from any operating system. This flexibility ensures that administrators can manage their network of device servers efficiently, regardless of the operating system they are using.

The product family includes the following options:

• 1-Port Serial to Ethernet Adapter with PoE (I13P-SERIAL-ETHERNET)
• 1-Port Serial to Ethernet Adapter (I13-SERIAL-ETHERNET)
• 2-Port Serial to Ethernet Adapter (I23-SERIAL-ETHERNET)
• 4-Port Serial to Ethernet Adapter (I43-SERIAL-ETHERNET)

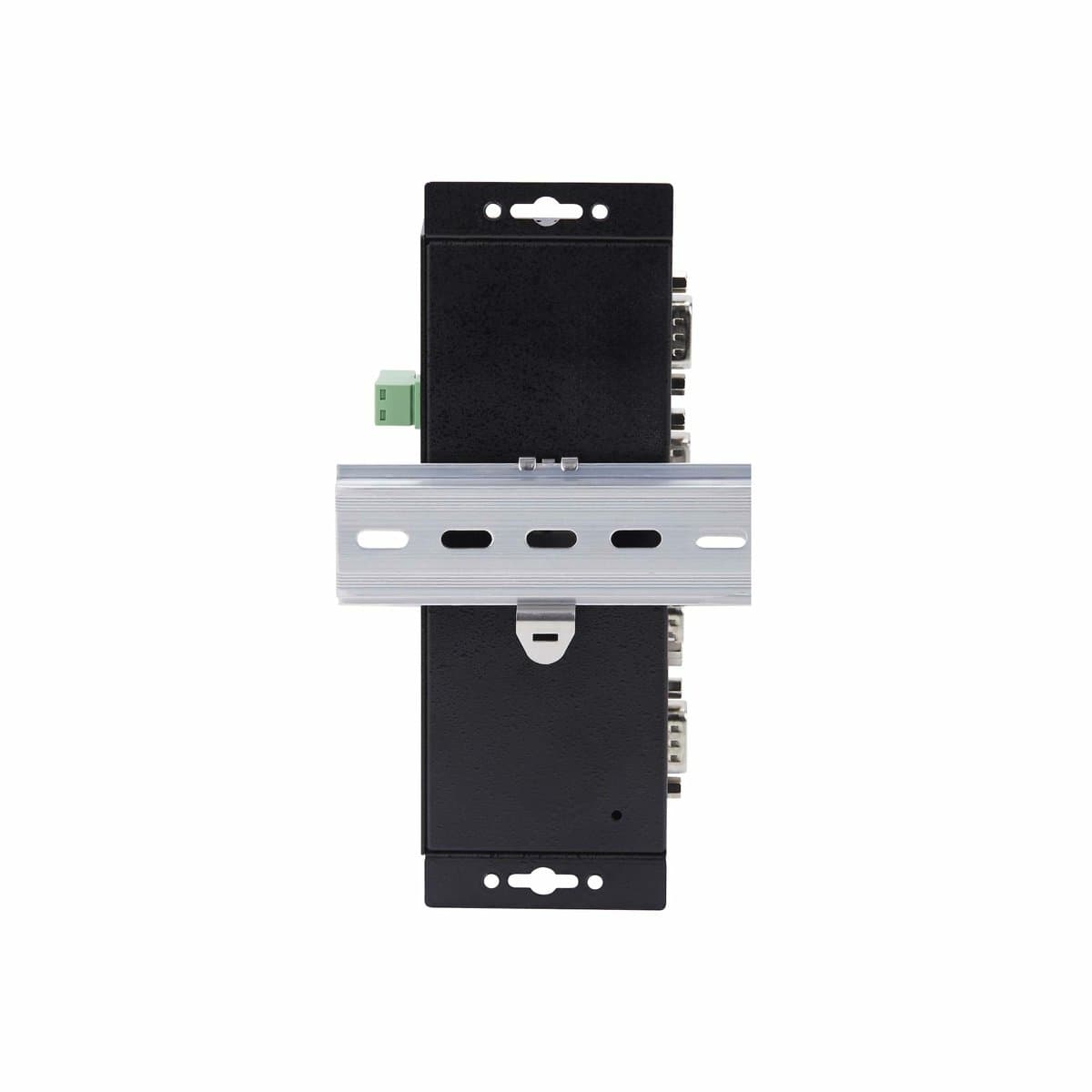

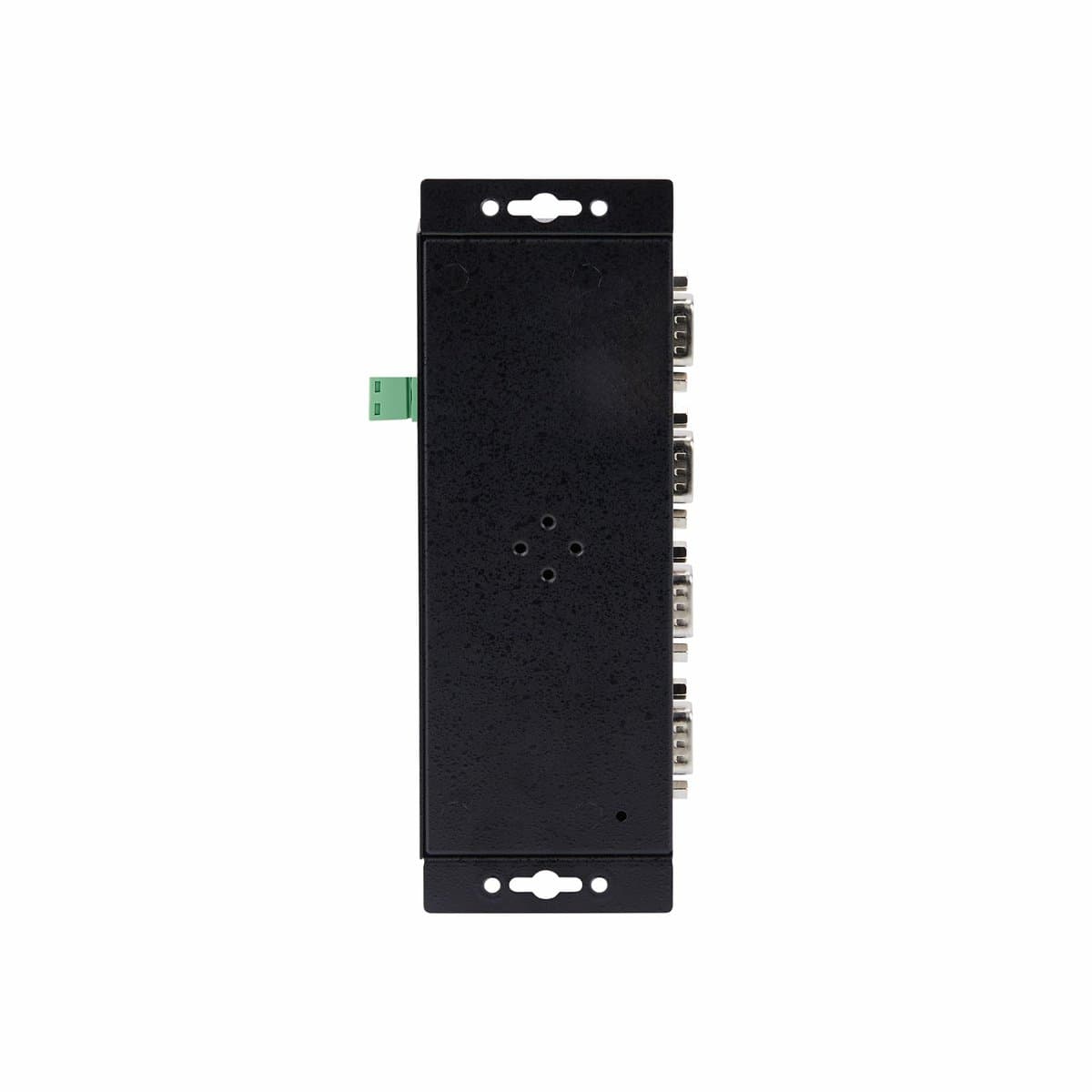

Flexible Installation and Rugged Chassis

Dual power options, DC jack and terminal block, provide installation flexibility and convenience. The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. Dimensions of 7x2.3x0.9in (178x59.4x23mm).

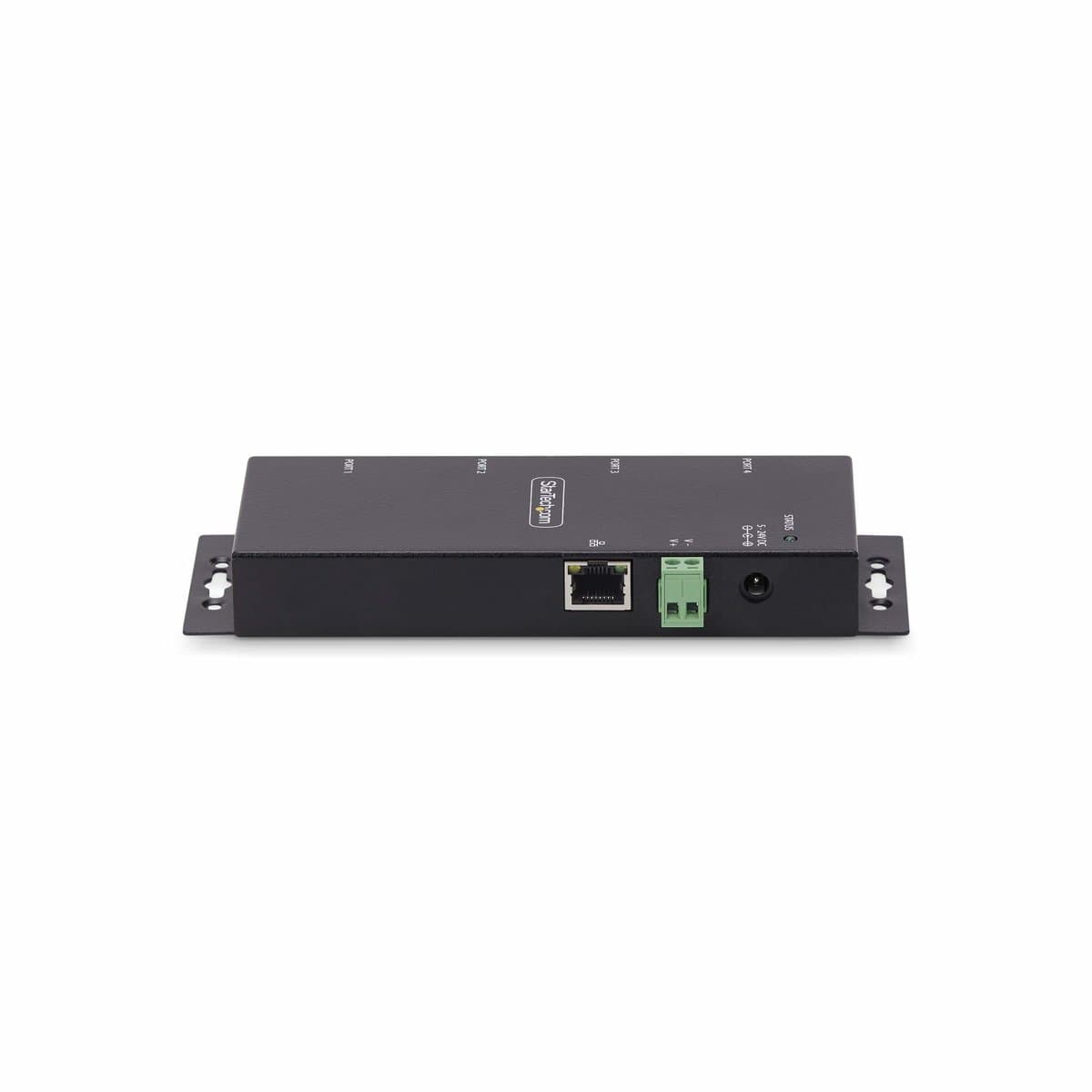

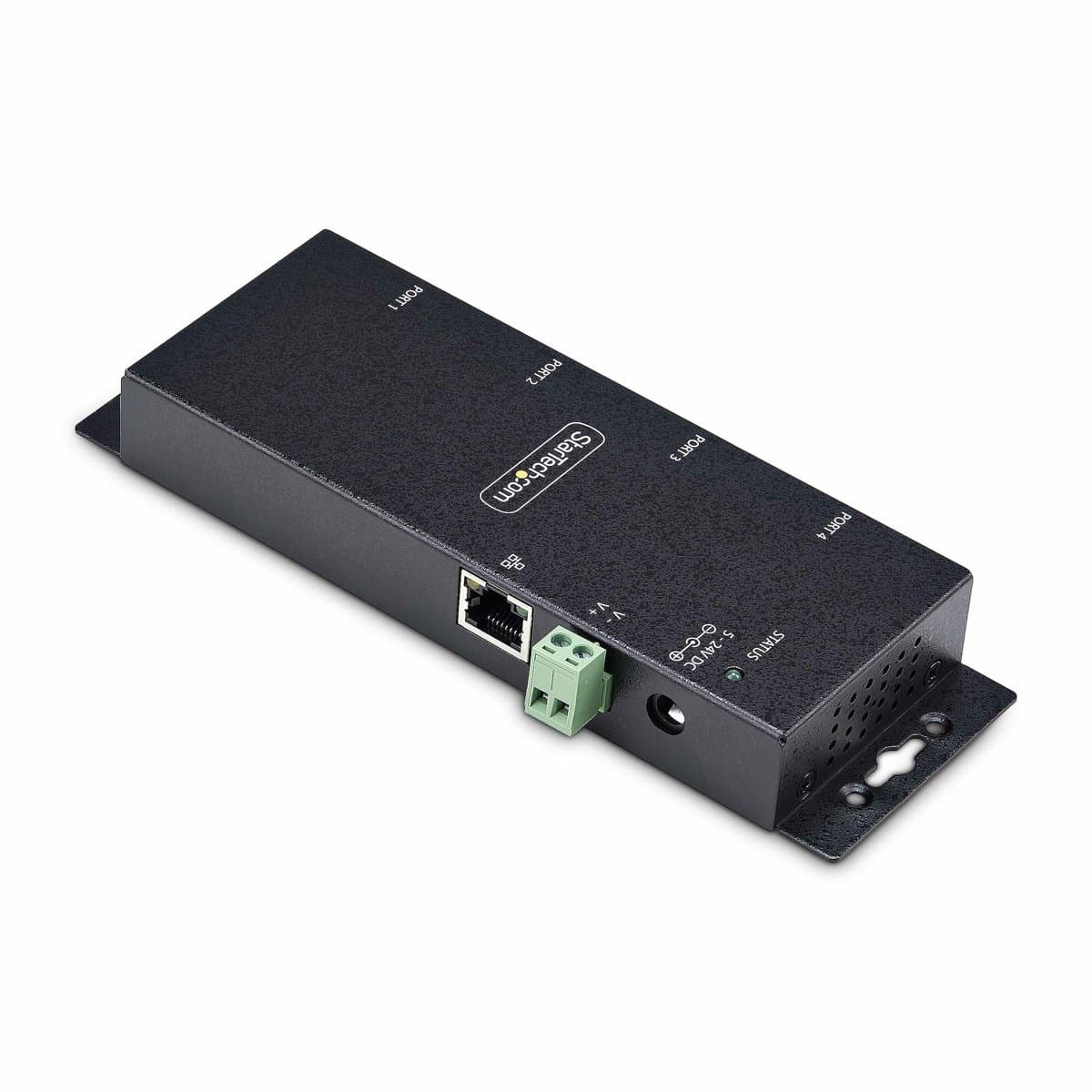

Ethernet and Power Options

The TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports ESD level 4 surge protection, and can supply 5VDC over pin 9 if required.

The StarTech.com Advantage
