StarTech.com · IM7AG152

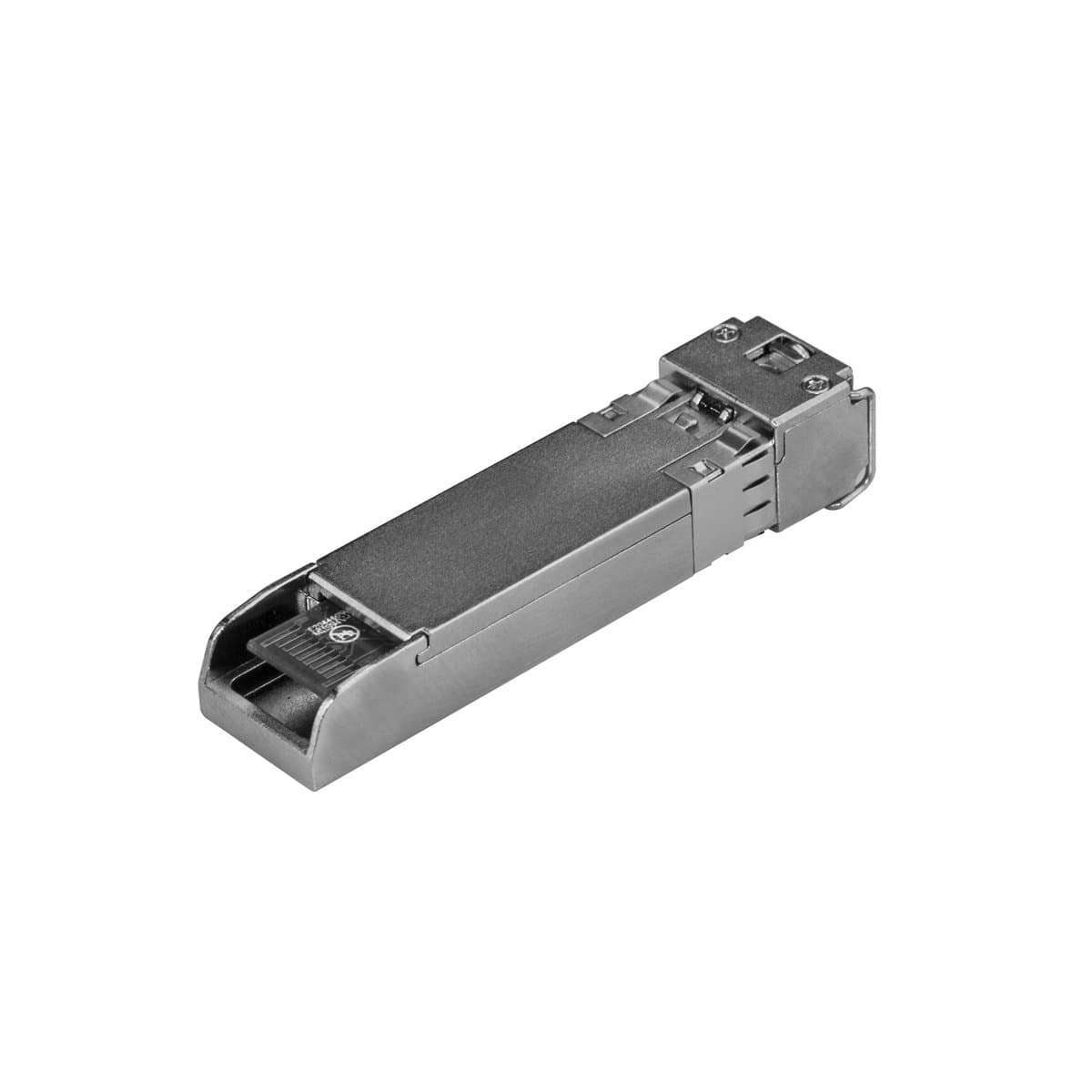

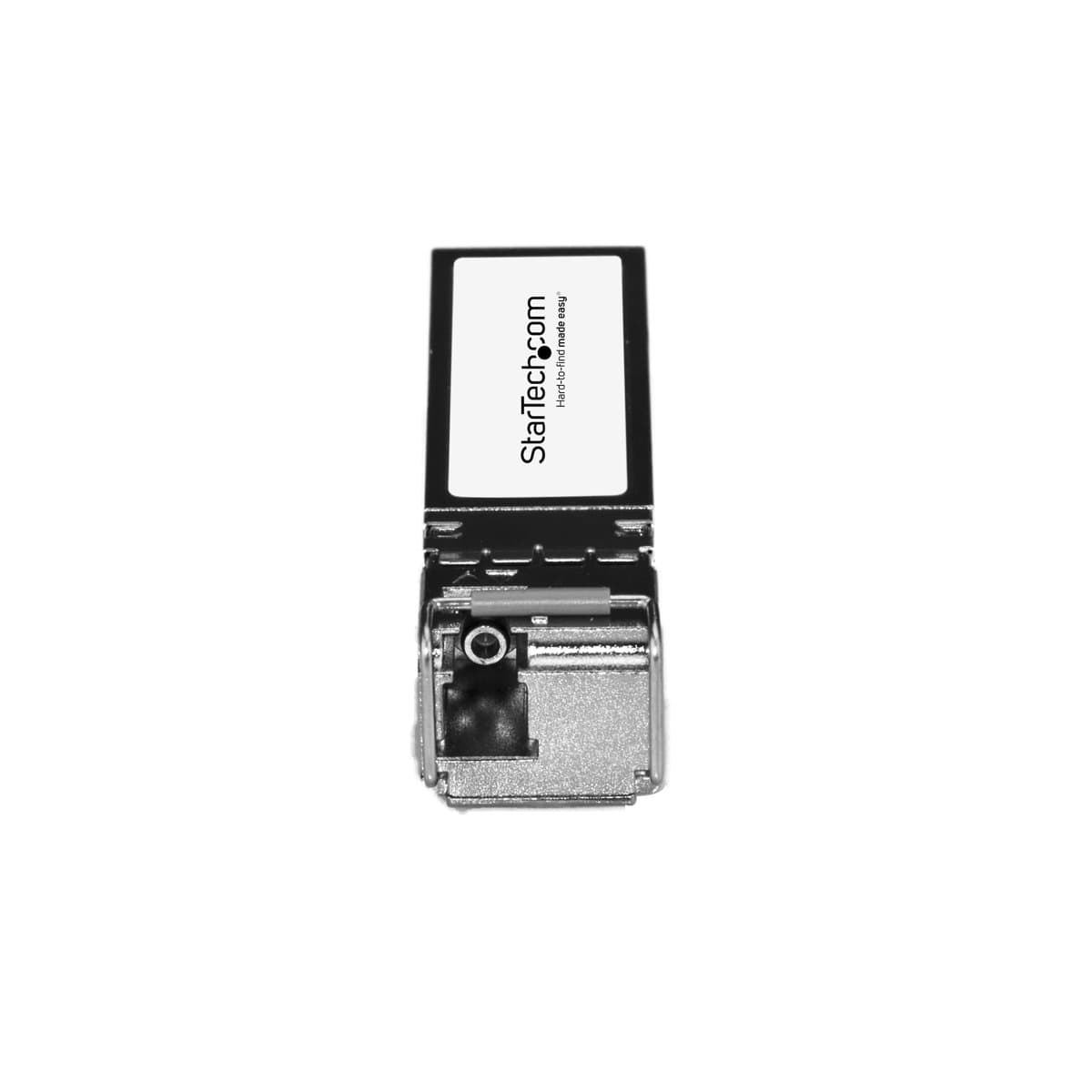

StarTech Cisco SFP-10G-BX-U-20, 10 Gbps, Single Mode Fiber, LC, 20 km

StarTech.com Cisco SFP-10G-BX-U-20 Compatible SFP+ Module - 10GBASE-BX - 10 GbE Gigabit Ethernet BiDi Fiber (SMF), Fiber optic, 10000 Mbit/s, SFP+, LC, BX-U, 20000 m

100% CISCO SFP-10G-BX-U-20 COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ works with Cisco switches like ASR9000, ASR1000, NCS5500, C3850, NCS540 and others
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
TECHNICAL SPECS: 10GBASE-BX / 10Gbps / 10G Bi-Directional Upstream / Single Mode (SMF) / LC Connector / 1270nmTx/1330nmRx / Digital Diagnostic Monitoring (DDM) / Distances up to 20km (12.4mi)
PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with OEM routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools
THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance

In stock · 75 units · Ships tomorrow

◇ Shipping calculated at checkout

↩ 30-day returns · no questions asked

⊡ Sourced via Ingram Micro · ships from US distribution

About this product

10 Gbps | Single Mode Fiber | LC | 20 km (12.4 mi) | Lifetime Warranty

The SFP-10G-BX-U-20-ST is a Cisco SFP-10G-BX-U-20 compatible upstream fiber SFP+ transceiver which pairs with StarTech.com's SFP-10G-BX-D-20-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible Cisco switches and routers. The SFP+ transceiver module supports a maximum distance of up to 20 km (12.4 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1270nmTx/1330nmRx
• Maximum Data Transfer Rate: 10Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 20 km (12.4 mi)
• Power Consumption: Low power consumption
• DDM: Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Download datasheet (PDF)Manufacturer product page
