StarTech.com · IM700X17

StarTech.com Fiber Optic Cable Tester Light Power Meter/Fault Locator

StarTech.com Fiber Optic Cable Tester, Multi-function Optical Fiber Tester, Fiber Light Power Meter and Visual Fault Locator for FC/SC/ST Fiber Cables, Fiber cable tester, FC, SC, ST, Light source testing, Optical power testing, Visual fault locator testing, 1625,1550,1490,1310,1…

PORTABLE FIBER TESTING TOOL: Measure optical power and verify light source transmission with this all-in-one Multi-function Fiber Cable Tester; Backlit LCD display for clear instant readings; Auto shut-off engages after inactivity to optimize battery use
SIMPLIFY TROUBLESHOOTING: Assess fiber connectivity issues using Optical Power (OP) and Light Source (SL) test modes; Pinpoint fiber breaks using Red Light (RL) Visual Fault Locator mode; Verify that Insertion Loss is within operating specifications

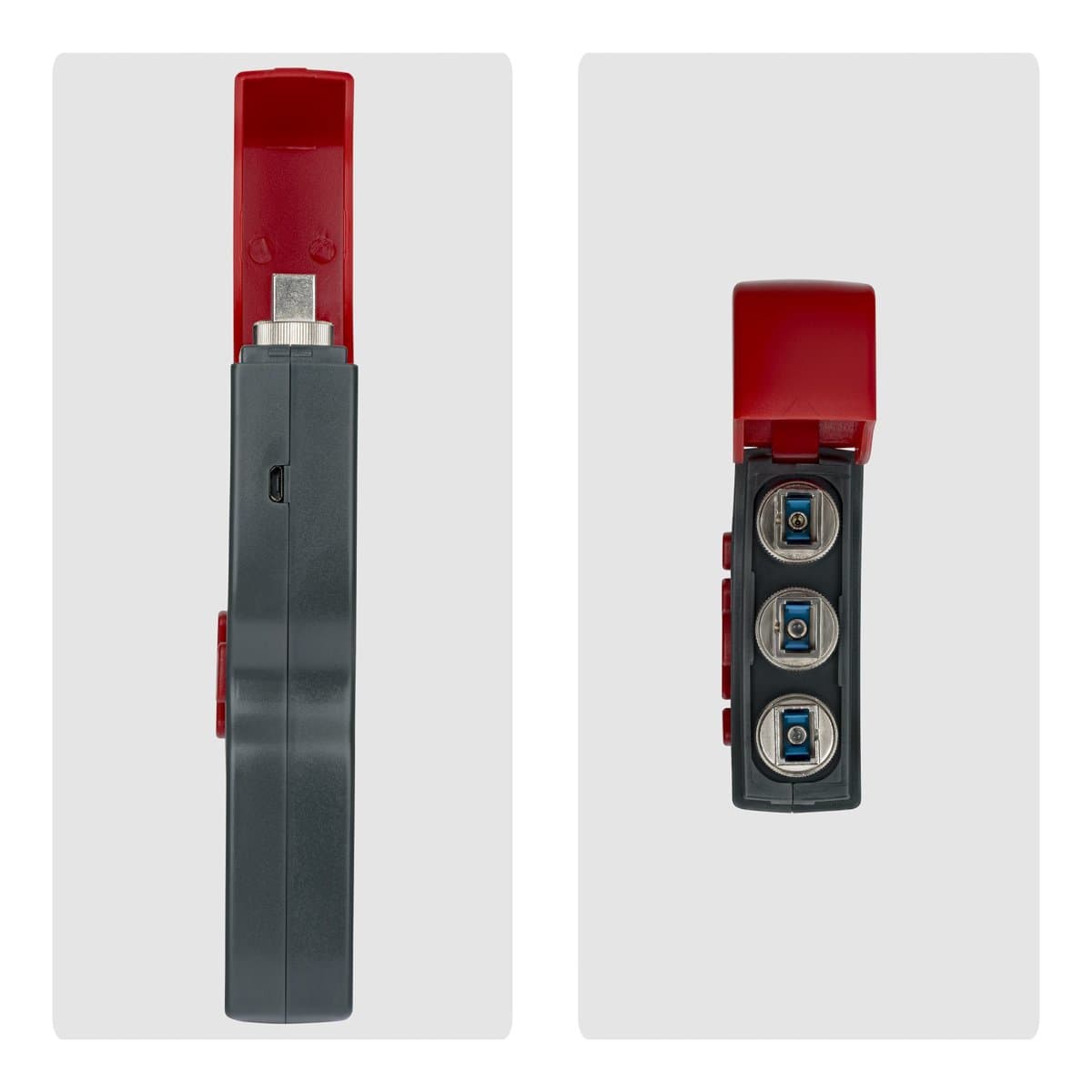

COMPATIBILITY: Compatible with all multimode and single-mode FC/SC/ST fiber cables; Supports industry-standard wavelengths: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, and 1625nm; Removable screw-on SC fiber connector adapters
APPLICATIONS: Test and validate fiber optic cables in enterprise networks, server rooms, and data centers, ensuring compliance within operating standards; Diagnose signal loss, attenuation, and optical power issues for reliable performance
SPECS: Test Modes: Optical Power (OP), Light Source (SL), Visual Fault Locator (RL); Supports OS1/OS2 and OM1/OM2/OM3/OM4/OM5 fiber cables; Wavelength Range: 850nm-1625nm; Measurement Units: decibel (dBm), nano-watt (nw); Frequency Range: 270/1000/2000Hz

In stock · 130 units · Ships tomorrow

◇ Shipping calculated at checkout

↩ 30-day returns · no questions asked

⊡ Sourced via Ingram Micro · ships from US distribution

About this product

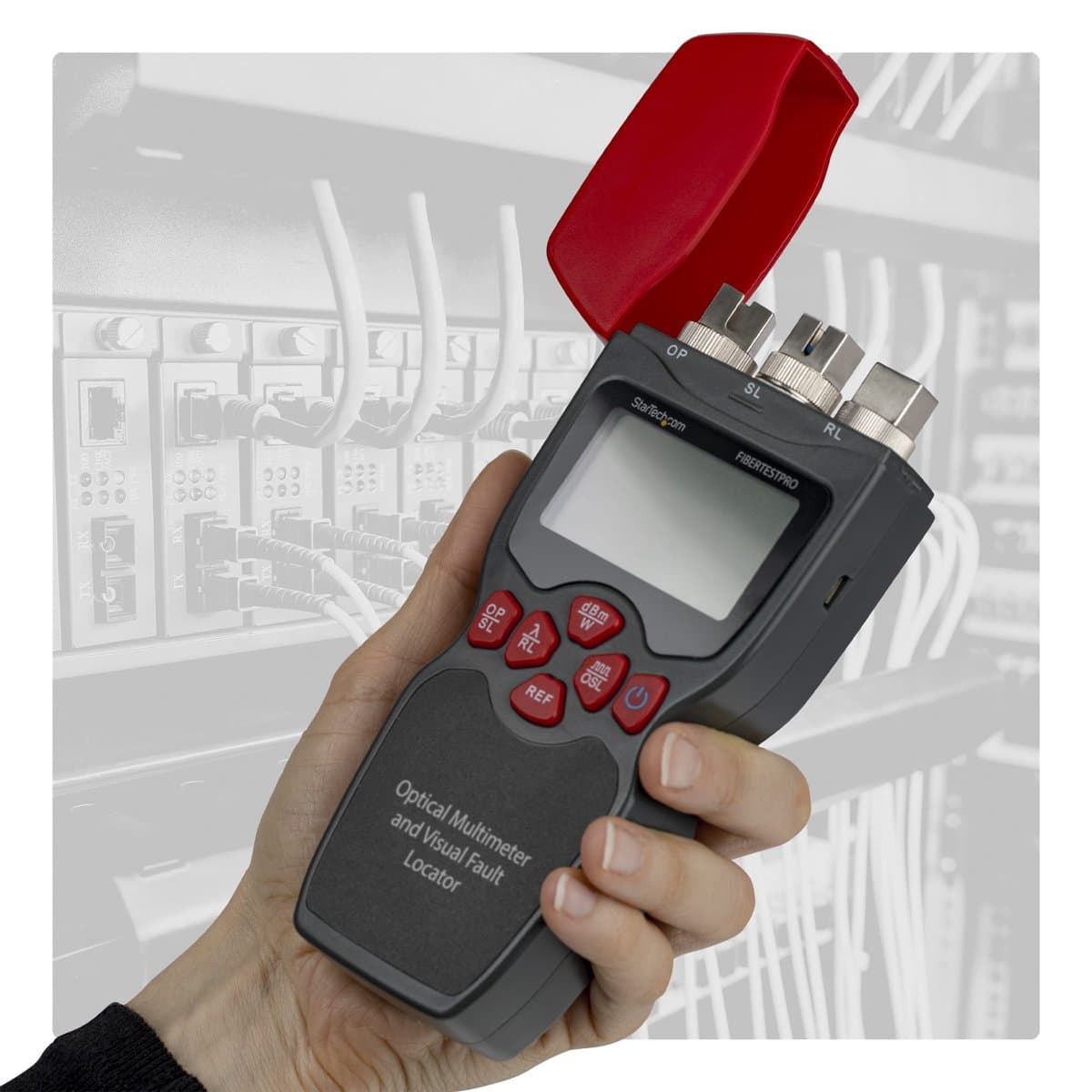

Verify optical power strength and locate faults across multimode and single-mode fiber optic cables

This Multi-function Fiber Optic Cable Tester is a practical tool for measuring optical power, verifying light source transmission, and diagnosing connectivity issues in fiber networks. It provides immediate, clear readings with its backlit LCD display. Use this all-in-one tester to monitor critical fiber connections and eliminate the need for additional fiber testing tools.

Simplify Fiber Cable Testing

This Optical Fiber Tester streamlines cable testing to ensure that fiber cables meet performance standards and reduce downtime risks. It enables technicians to test for signal inconsistencies and supports industry-standard wavelengths and FC, SC, and ST connectors. The Fiber Tester is compatible with Single Mode and Multimode fiber cables.

Multi-function Cable Diagnostics

Quickly identify fiber connectivity issues with Optical Power (OP) and Light Source (SL) test modes, or pinpoint faults using the Red Light (RL) Visual Fault Locator. The Visual Fault Locator mode can quickly check for damaged cables and is ideal for high-density setups.

Compact Form Factor

The Fiber Cable Tester features a portable handheld design is ideal for IT Pros performing troubleshooting in server rooms and data centers, making it an essential tool for on-site diagnostics and maintenance.

Download datasheet (PDF)Manufacturer product page
