StarTech.com · IM7BC646

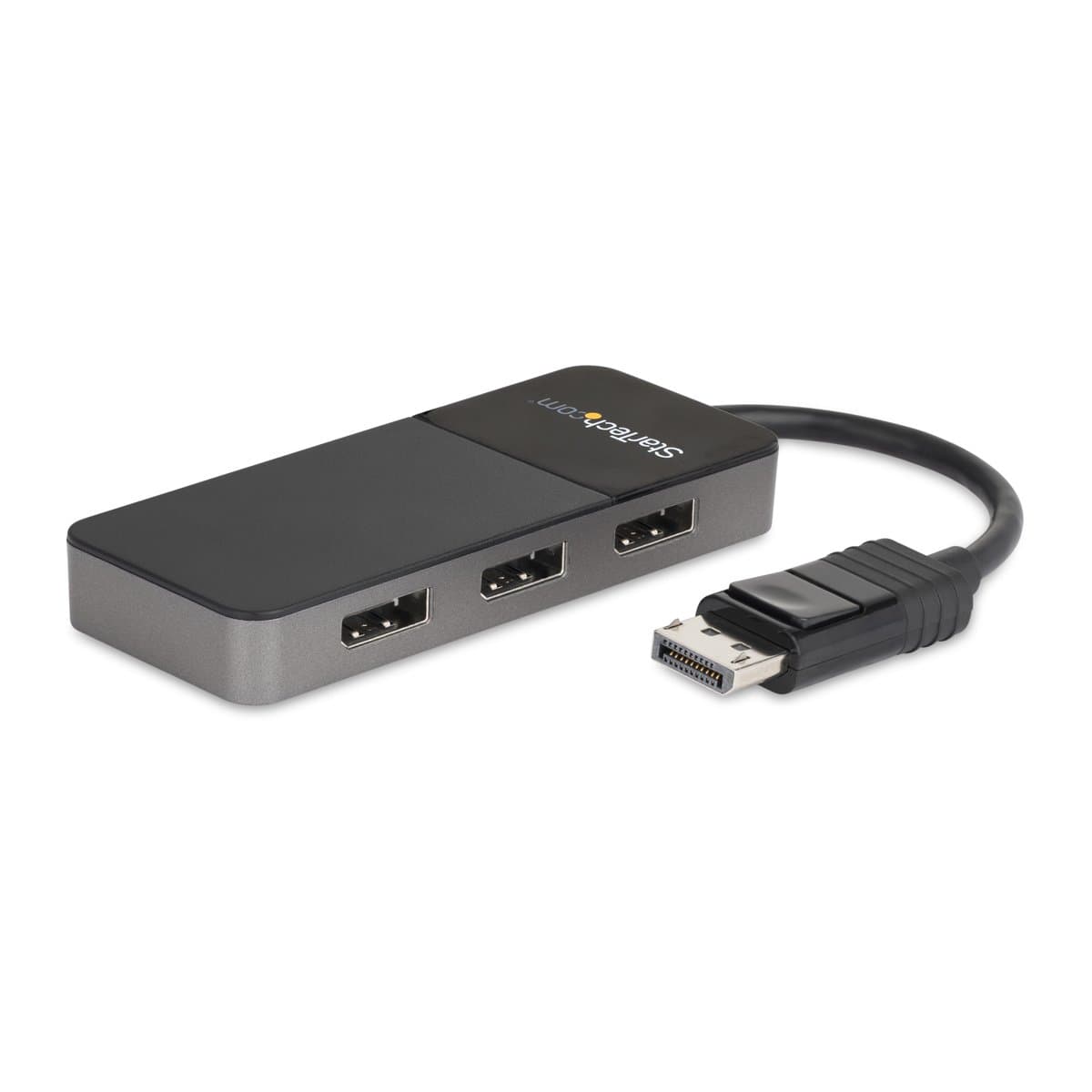

StarTech DisplayPort 1.4 MST Hub, 3-Port Splitter, 8K Resolution, HDR

StarTech.com 3 Port Multi Monitor Adapter - DisplayPort 1.4 to 3x 4K DisplayPort Video Splitter - Dual or Triple 4K - Laptop/Desktop DisplayPort MST Hub for Multiple Monitors - For Windows PCs Only, DisplayPort, 3x DisplayPort, 7680 x 4320 pixels, Black, Grey, Plastic, 8K Ultra H…

MULTI-MONITOR CONFIGURATION: Triple-Monitor DisplayPort 1.4 MST Hub drives up to 2x 4K 30Hz (UHD) + 1x 4K 60Hz DisplayPort monitors using a DP video port on a Windows desktop PC or laptop; Not compatible with macOS
NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows computer; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
HARDWARE COMPATIBILITY: Host system must support DP 1.4 / HBR3 / MST; Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays;
EASY TO USE: Extend your desktop at your workstation in the office/home office; Latching DisplayPort connector ensures a reliable connection and prevents accidental disconnection; Not compatible with HDMI output ports; USB Power Cable included
OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the 3-Port DisplayPort Multi-Monitor Adapter

In stock · 272 units · Ships tomorrow

◇ Shipping calculated at checkout

↩ 30-day returns · no questions asked

⊡ Sourced via Ingram Micro · ships from US distribution

About this product

3 x 4K | Multi-Monitor Video Splitter | Windows® | HDR

This 3-port DisplayPort MST hub lets you create a high-performance workstation by connecting three DisplayPort monitors to your DisplayPort device, helping to increase and maximize your productivity. The multi-monitor splitter supports High Dynamic Range (HDR) and provides sharper images with enhanced video.

Incredible Picture Quality

Supporting four times the resolution of 4K, this DP 1.4 MST hub delivers the stunning quality of UHD at resolutions up to 7680×4320 at 30Hz on a single monitor and supports multi-monitor applications at lower resolutions and refresh rates, enabling a dynamic work environment whether you're in the office, at home or traveling.

Display 1

Display 2

Display 3

8K (7680x4320) @ 30Hz

X

X

5K (5120x2880) @ 60Hz

1080p (1920x1080) @ 30Hz

X

4K (3840x2160) @ 60Hz

4K (3840x2160) @ 30Hz

4K (3840x2160) @ 30Hz

2K (2560x1600) @ 60Hz

2K (2560x1600) @ 60Hz

2K (2560x1600) @ 60Hz

1080p (1920x1080) @ 60Hz

1080p (1920x1080) @ 60Hz

1080p (1920x1080) @ 60Hz

Both your source and destination must support DisplayPort 1.4 in order to achieve maximum resolution (8K 30Hz).

Lower resolutions and refresh rates may also be supported.

Multi-Tasking Made Easy

This DisplayPort to 3x DisplayPort MST hub enables you to connect three displays to your DP computer, making multi-tasking much easier. Using this multi-monitor video splitter, you can mirror your display onto multiple monitors, stream independent content to each display or extend your screen to create a video wall effect.

Hassle-Free Setup

Multi-stream transport offers an easy setup, by natively working on any Windows device. It offers plug-and-play installation with no drivers or software required. Additionally, the DisplayPort MST hub is bus-powered (with the included micro-USB cable), creating an ultra-portable solution for business and IT professionals.

MST14DP123DP is backed by a StarTech.com 3-year warranty, and free lifetime technical support.
