StarTech.com · IM8NT074

StarTech Industrial Gigabit Ethernet PoE Injector, 30W 802.3at, 48–56V DC, -40–75°C, 100m

$60

StarTech.com Industrial Gigabit Ethernet PoE Injector - 30W 802.3at PoE+ Midspan 48V-56VDC DIN Rail Power Over Ethernet Injector Adapter - -40C to +75C Cameras/Sensors/WiFi Access, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 8…

  • 30 WATT GIGABIT ETHERNET PoE INJECTOR: Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like cameras, sensors, and wi-fi access points
  • TECH SPECS: 1 Gbps
  • 48V-56VDC input
  • IEEE 802.3af / IEEE 802.3at (30W)
  • 10/100/1000 Mbps auto negotiation
  • Link fault passthrough (LFP)
In stock · 92 units · Ships tomorrow
Shipping calculated at checkout
30-day returns · no questions asked
Sourced via Ingram Micro · ships from US distribution

About this product

Rugged PoE Injector | 30 Watts | IP-30 Aluminum Housing | 48V-56V DC | DIN Rails

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

30 Watt Power Budget

Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:

Cameras

Sensors

Wi-fi access points

Uses Cat 5e (or higher rated) Ethernet cabling.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

Vibration: EN 60068-2-6

Shock: EN 60068-2-27

Free-fall: EN 60068-2-32

600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

Dual Power Inputs

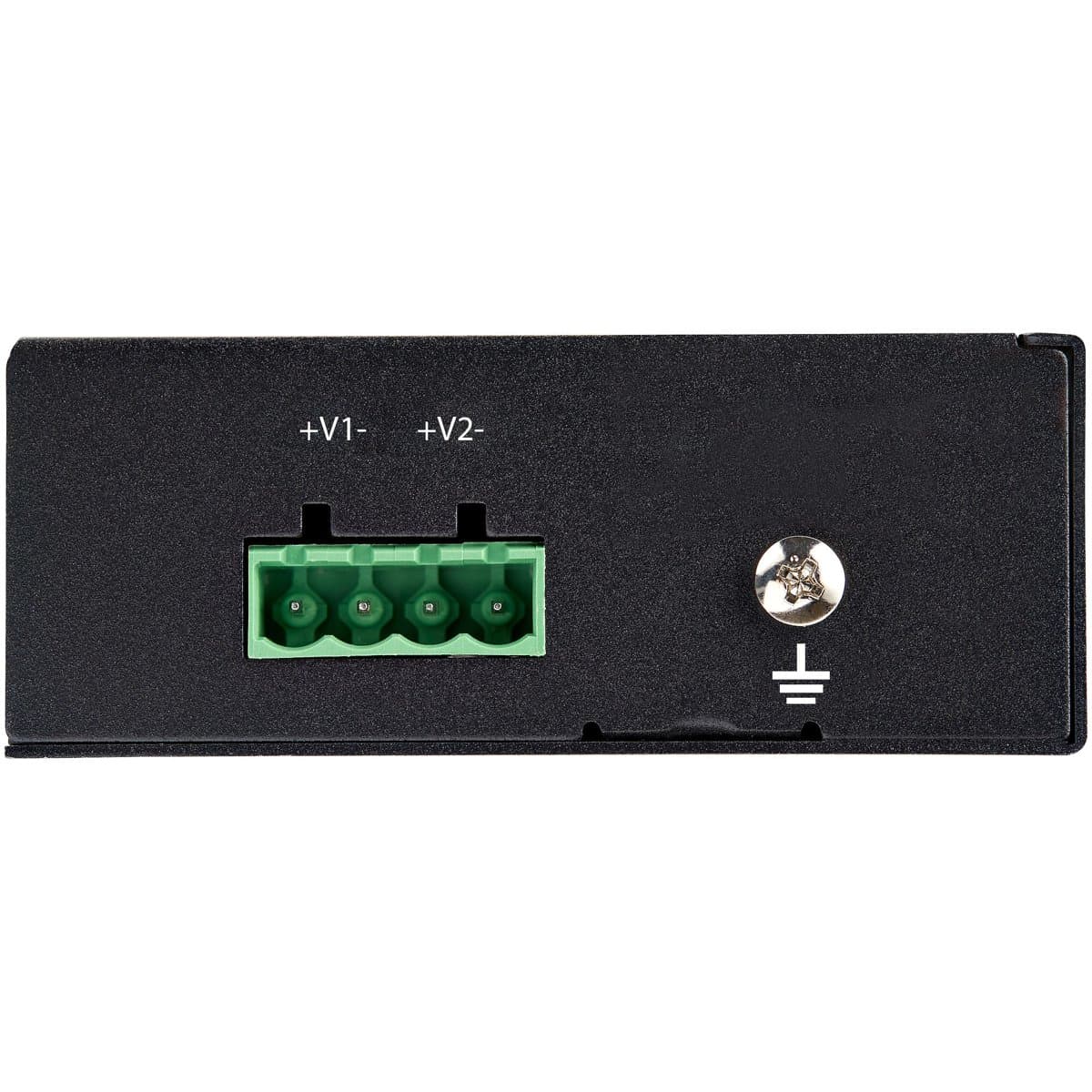

Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- 30 WATT GIGABIT ETHERNET PoE INJECTOR: Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like cameras, sensors, and wi-fi access points
- TECH SPECS: 1 Gbps
- 48V-56VDC input
Download datasheet (PDF)Manufacturer product page

Specifications

Connectivity

PoE Standard
802.3at (PoE+)

Environment

Operating Temperature
-40–75°C °C

Performance

Data Rate
1000 Mbps Mbps

Physical

Maximum Operating Distance
100m m

Power

Power per Port
30W W
Input Voltage
48–56V DC V

Product details

Brand
StarTech.com
Vendor
StarTech.com
Ingram Part Number
8NT074
UPC
0065030891363
MSRP
$57
Stock
92 units
