StarTech.com · IM920Y23

StarTech LC Fiber Coupler, 10 Pack, Single-Mode OS2, LC/APC

$39

StarTech.com LC to LC Coupler 10 Pack, OS2 Single Mode SC Footprint LC Fiber Optic Coupler without Flange, LC/APC Duplex Adapter, LC/APC, Green, Single-mode, OS2, CE, 4 g

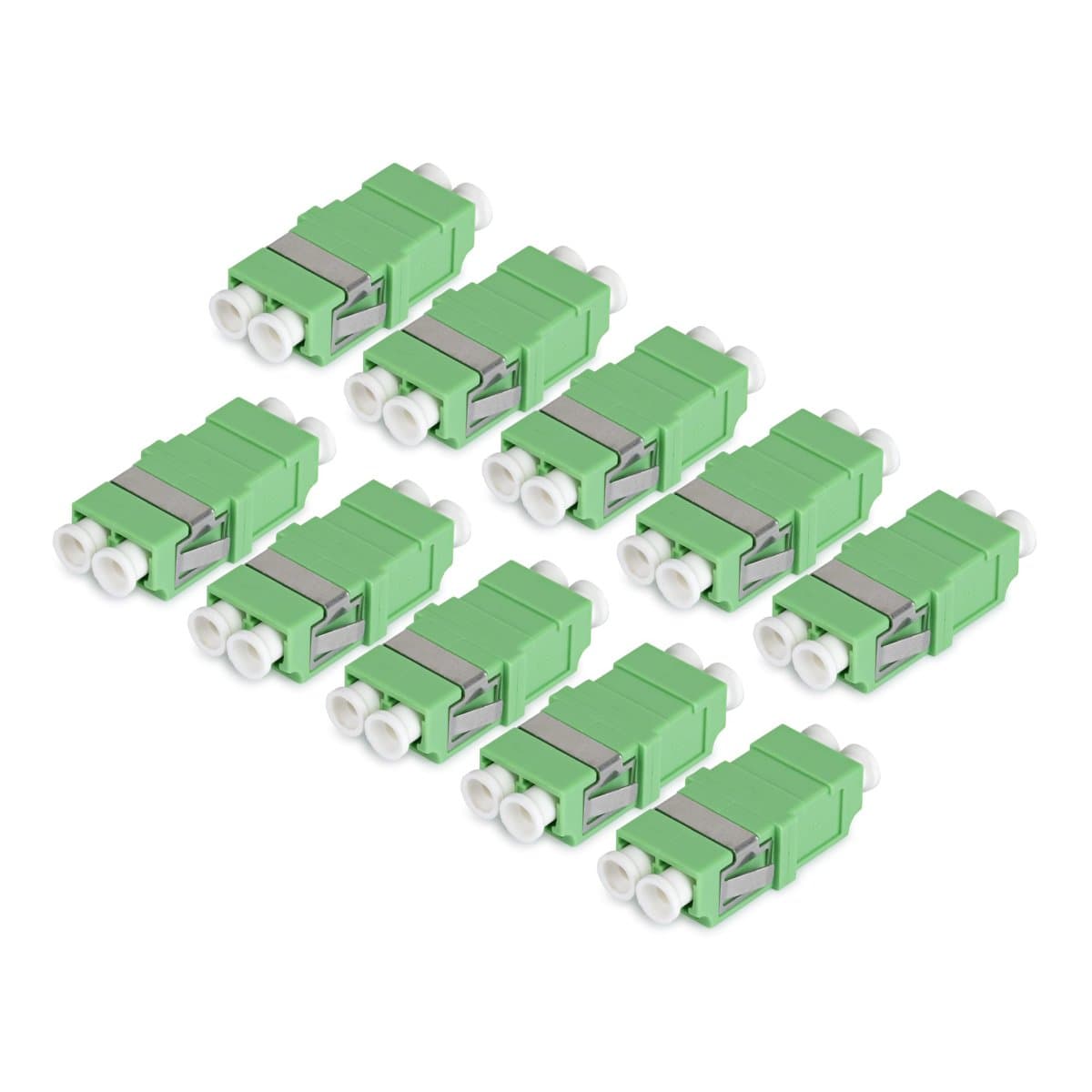

  • <b>Extend Multiple LC Connections</b>: Deploy faster and more organized with a 10-pack of LC/APC duplex couplers in a flangeless SC-format housing, ideal for fiber splice cassettes and distribution panels in large-scale installations
  • <b>Reliable, High-Speed Performance</b>: Engineered for 1/10/40/100Gbps transmission with low 0.2dB insertion loss and precision mating, this coupler maintains peak signal integrity and exceeds TIA-568 B.3 standards; Optimized for Single Mode laser sources
  • <b>Quick Installation</b>: Flangeless snap-in design enables fast, tool-free placement in fiber cassettes or assemblies with SC duplex slots; Connects internal LC terminations to external LC patch cords for serviceable, low-loss links across fiber network infrastructure
  • <b>Single-Mode Compatibility</b>: Pair with LC fiber cables with APC polished ends for optimal signal clarity and minimal return loss; Supports OS2/OS1 single-mode connections over 9/125μm cores at standard 1260-1625nm wavelengths
  • <b>The IT Pro's Choice</b>: Operations managers and network technicians rely on our network accessories for high-speed performance and end-to-end signal integrity; Engineered for reliable connections that minimize downtime, and backed by free lifetime 24/5 multi-lingual technical assistance
In stock · 657 units · Ships tomorrow
Shipping calculated at checkout
30-day returns · no questions asked
Sourced via Ingram Micro · ships from US distribution

About this product

Connect two Single Mode LC/APC fiber cables or add an LC interface in a fiber breakout cassette

This 10-Pack of flangeless Single Mode LC couplers is a practical solution for supporting multiple installations. Join two LC Duplex connections in a fiber splice cassette or distribution panel.

Toolless Installation for Quick Setup

The LC Fiber Coupler supports Single Mode LC fiber cables. It is compatible with OS1/OS2 (9/125µm) fiber core/cladding. The coupler features toolless setup to simplify installation into fiber panels and modular assemblies. This 10 Pack is ideal for fast deployment in enterprise networks and fiber infrastructure.

Built for Reliable Performance

The Single Mode LC/LC Fiber Coupler features a durable PBT housing and zirconia ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.
Download datasheet (PDF)Manufacturer product page

Specifications

Connectivity

Connector Type
LC/APC Duplex
Fiber Mode
Single-Mode

Optical

Fiber Standard
OS2
Fiber Core/Cladding
9/125 µm

Physical

Quantity
10 Pack

Warranty

Compliance
CE

Product details

Brand
StarTech.com
Vendor
StarTech.com
Ingram Part Number
920Y23
UPC
0065030928199
MSRP
$37
Stock
657 units
