StarTech.com · IMCN0606

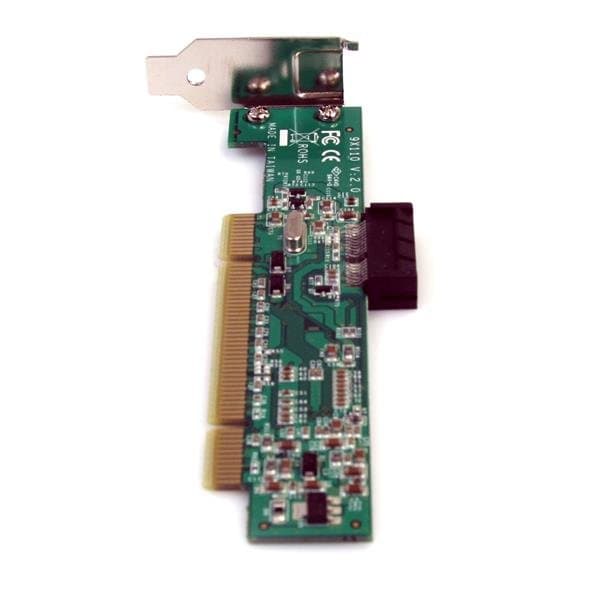

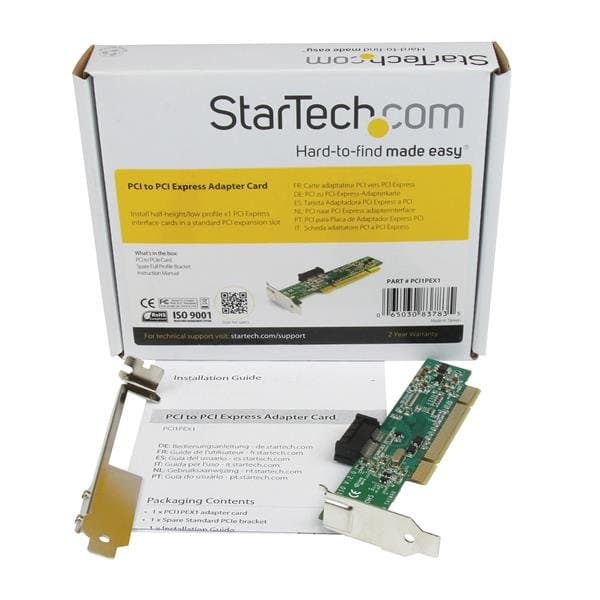

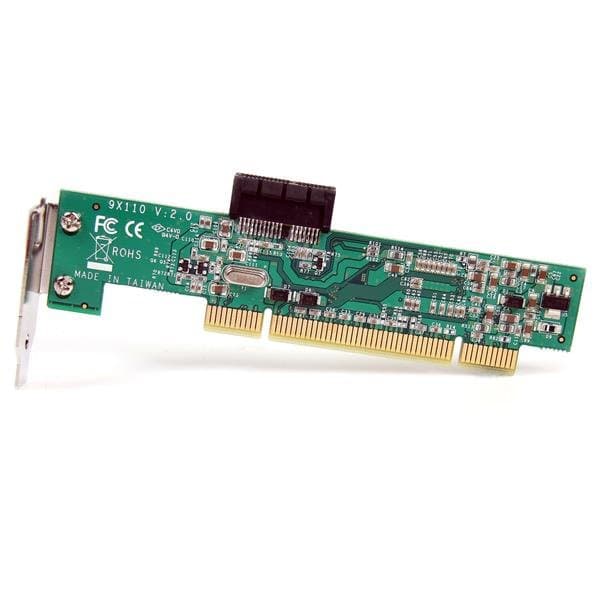

StarTech PCI1PEX1, PCI to PCIe x1 Adapter, Low Profile, 32-bit

StarTech.com PCI to PCI Express Adapter Card, PCI, PCIe, PCI 2.3, CE, FCC, TAA, Pericom - PI7C9X111SL, 0 - 85 °C

Innovative bracket design adapts and secures the existing low profile/half-height bracket of the PCI Card
PCI revision 2.3 compliant with up to 133MBps of available bandwidth
LP4 Power Connector Included for Universal Voltage PCI Cards (3.3V/5V)
Compliant with PCI-to-PCIe Bridge Architecture Spec Revision 1.2
No driver or software installation

In stock · 249 units · Ships tomorrow

◇ Shipping calculated at checkout

↩ 30-day returns · no questions asked

⊡ Sourced via Ingram Micro · ships from US distribution

About this product

Install half-height/low profile x1 PCI Express interface cards in a standard PCI expansion slot

The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card.

The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.

The StarTech.com Advantage

Download datasheet (PDF)Manufacturer product page
