StarTech.com · IM5VH766

StarTech Rackmount KVM Console, 17" LCD, 1280×1024, VGA, 1U

$1,366

StarTech.com Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF, 43.2 cm (17"), 1280 x 1024 pixels, 250 cd/m², 1000:1, 170°, 160°

  • FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
  • VERSATILE INTERFACES: Rack mount monitor w/ 17" Active Matrix TFT 1280 x 1024 LCD
  • 1U height
  • 99 key full keyboard with numeric keypad + Trackpad
  • Supports VGA and USB
  • Integrated Power Supply
In stock · 198 units · Ships tomorrow
Shipping calculated at checkout
30-day returns · no questions asked
Sourced via Ingram Micro · ships from US distribution

About this product

KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

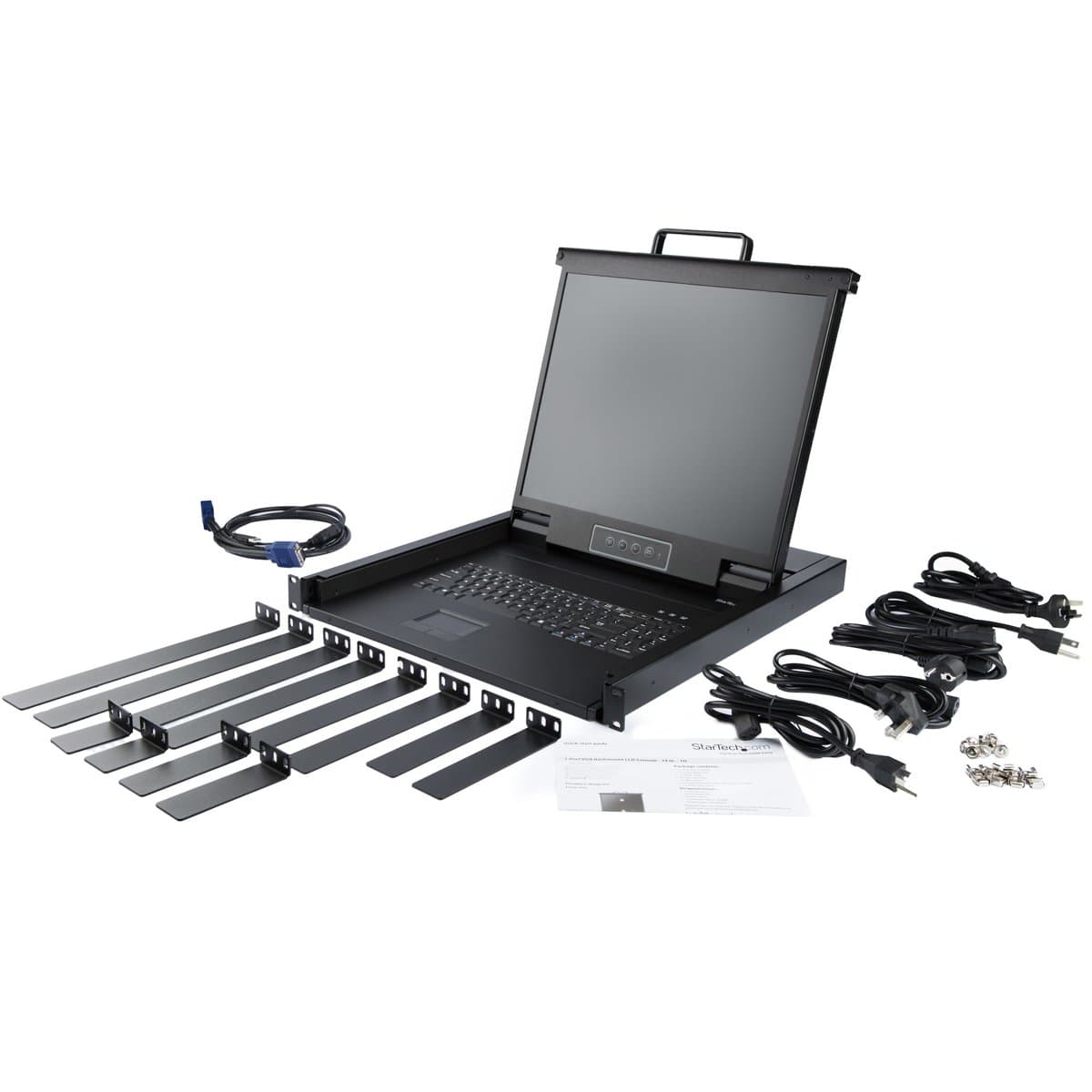

This single-port KVM console includes everything you need to set up right out of the box:

• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws

Simple System Integration

The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
Download datasheet (PDF)Manufacturer product page

Specifications

Connectivity

Video Port
VGA
Keyboard and Mouse Ports
USB

Display

Display Diagonal
17 inches
Display Resolution
1280×1024 pixels
Display Brightness
250 cd/m²

Power

Power Consumption
13 W
Input Voltage
100–240 V AC

Product details

Brand
StarTech.com
Vendor
StarTech.com
Ingram Part Number
5VH766
UPC
0065030872522
MSRP
$1,025
Stock
198 units
