StarTech.com · IMYS7803

StarTech USB4 M.2 NVMe Enclosure, 40 Gbps, Thunderbolt 5/4, Aluminum

StarTech.com USB4 M.2 NVMe Enclosure, 40Gbps, External USB-C/Thunderbolt NVMe SSD Enclosure, Aluminum Heatsink Case, B+M/M-Key, SSD enclosure, M.2, PCI Express, 40 Gbit/s, USB connectivity, Black

Next-Gen Performance: Transform your M.2 NVMe SSD into an ultra-fast external storage solution, delivering up to 40Gbps via a USB4 or Thunderbolt host; Ideal for IT technicians and professionals requiring fast, dependable SSD access
Stays Cool Under Load: Rugged aluminum heatsink enclosure with a high-performance thermal pad for effective heat dissipation; Maintains consistent SSD speeds under sustained load, supporting extended data transfers without active cooling
Broad Drive Compatibility: Easily access, transfer, or back up data using 2230/2242/2260/2280 M.2 NVMe PCIe SSDs, including Samsung 960/970/980/990/9100, Kingston, Seagate, Western Digital (WD), Crucial, and Intel; NOTE: M.2 SATA drives not supported
Broad USB-C Compatibility: Connect the NVMe enclosure with the included USB-C cable to a USB4, Thunderbolt 5/4/3, or USB 10Gbps host for seamless, driverless operation across macOS, Windows and Linux systems with USB-C ports
The IT Pro's Choice: Our hard drive enclosures are lab-tested for enterprise-grade performance, thermal efficiency, and OS compatibility; Ideal for secure backups and drive upgrades; Backed by free lifetime 24/5 multi-lingual technical assistance

In stock · 1,037 units · Ships tomorrow

◇ Shipping calculated at checkout

↩ 30-day returns · no questions asked

⊡ Sourced via Ingram Micro · ships from US distribution

About this product

Access Ultra-Fast NVMe Storage via 40Gbps USB4 with Thunderbolt 5 Compatibility

Turn your PCIe M.2 NVMe SSD into a fast and highly portable USB-C external storage solution. This NVMe enclosure supports USB4 (40Gbps), delivering read/write speeds up to 3,800 MB/s. Ideal for power users handling large media files, managing data across devices, or performing OS imaging, data recovery, and disk management.

Versatile USB-C & Thunderbolt Support

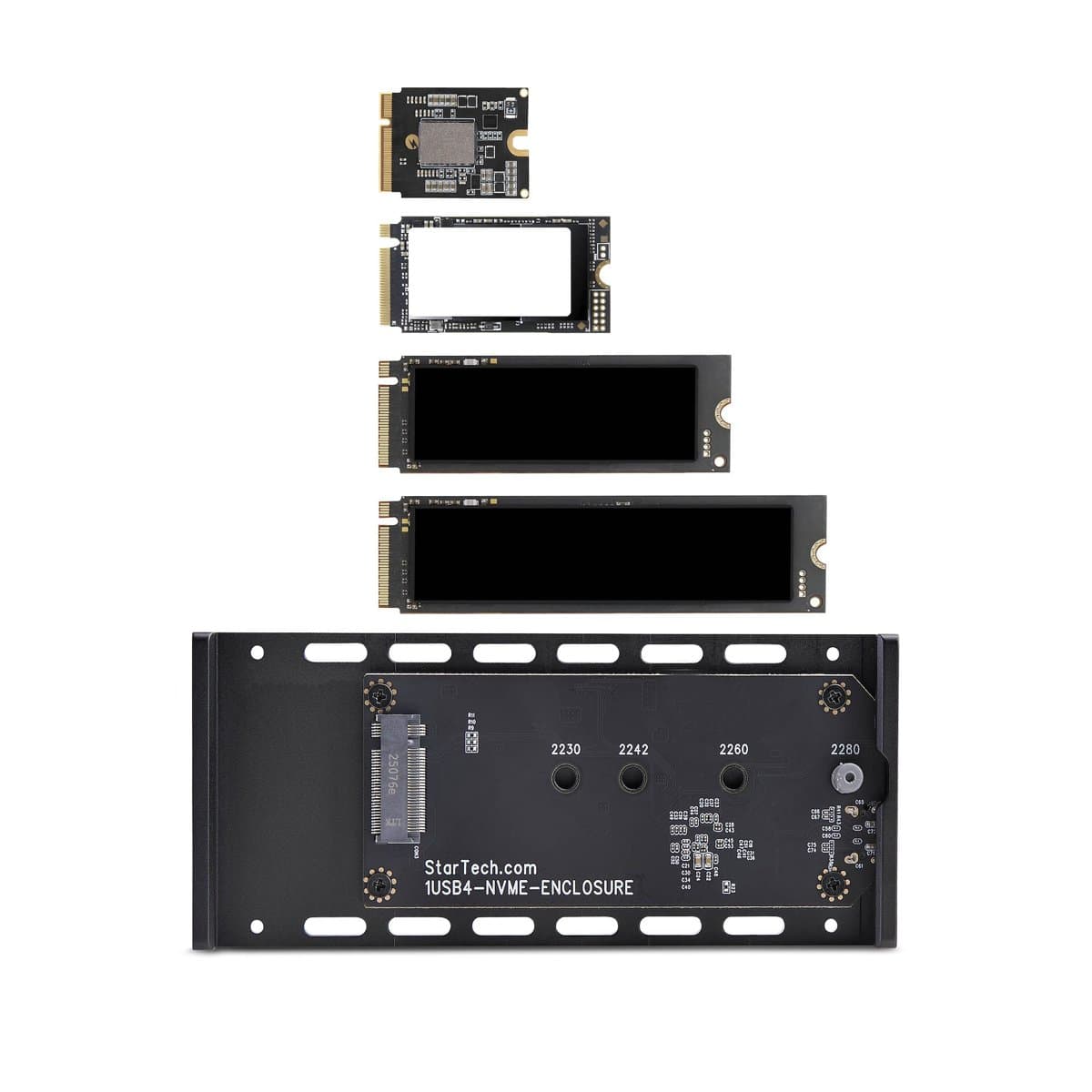

Built for current and next-gen storage, this USB4 enclosure connects M-Key or B+M Key M.2 NVMe SSDs (2230/2242/2260/2280) to USB4, Thunderbolt 5/4/3, or USB 3.2 hosts. It supports PCIe Gen 4x4 NVMe drives and offers native, driverless compatibility with Windows, macOS, and Linux. Seamless interoperability with USB-C and Thunderbolt systems makes it ideal for fast backups and high-volume data transfers.

Robust Heat Dissipation

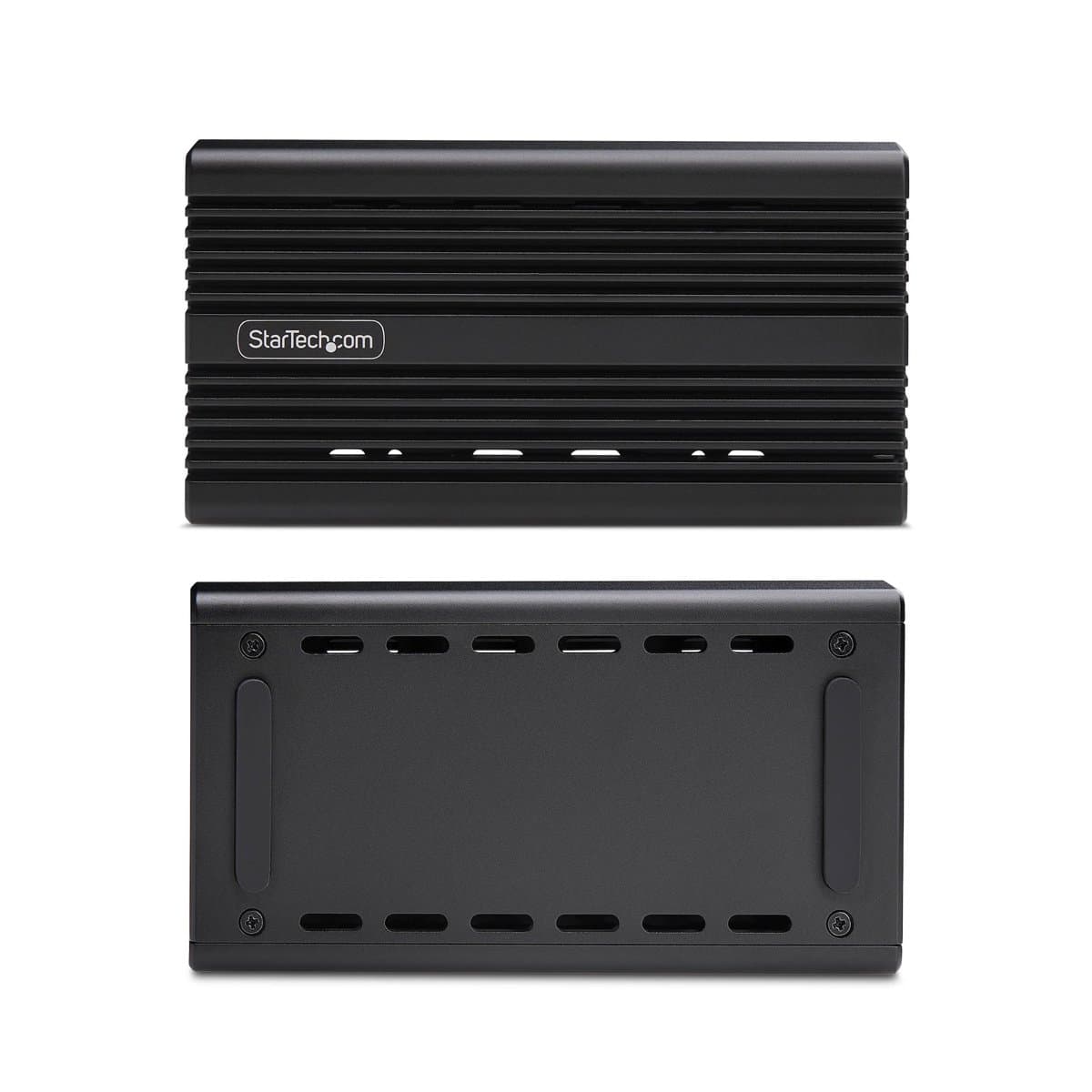

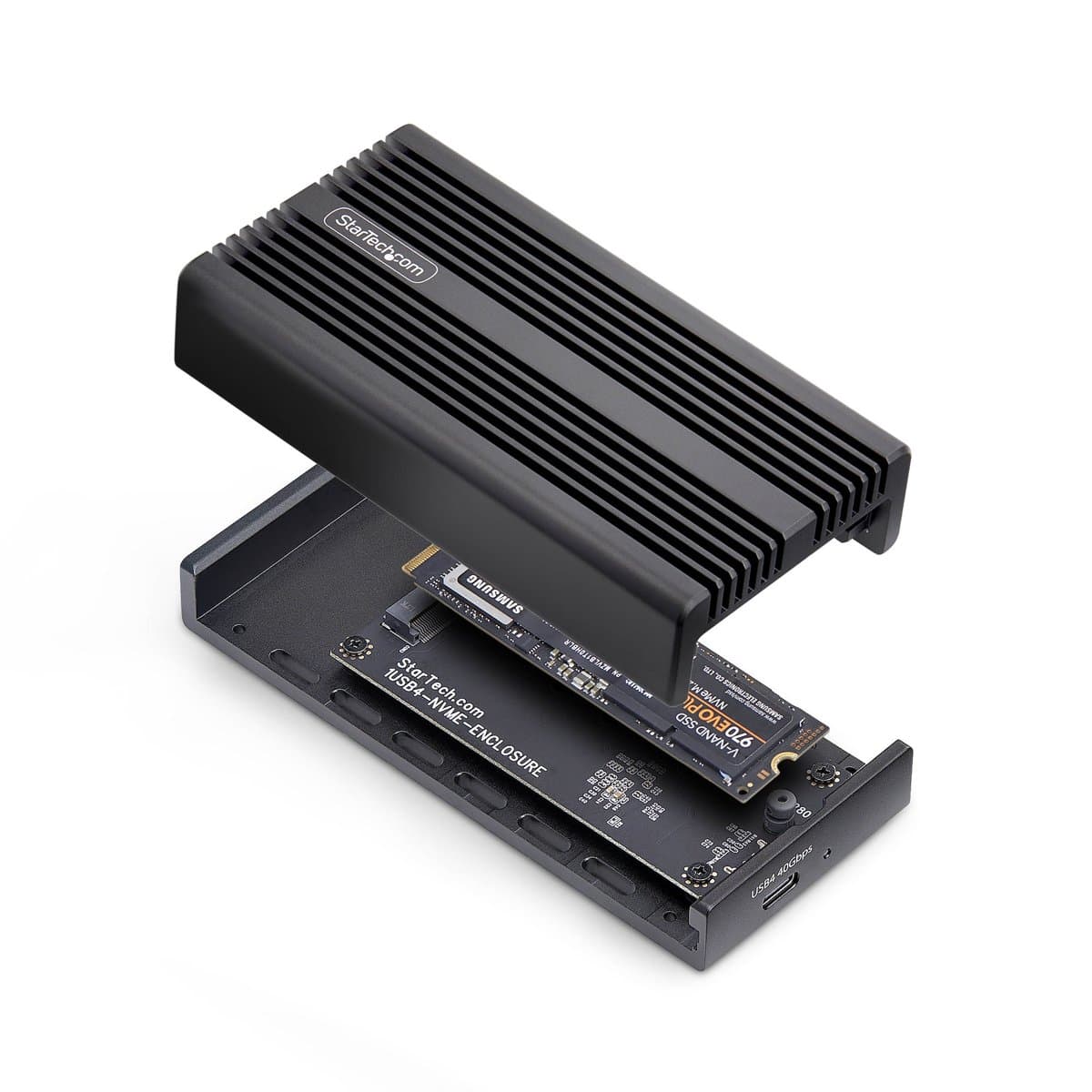

The anodized aluminum housing features a heatsink-style cover design with a high-efficiency thermal pad to enable passive cooling during sustained workloads. The fanless construction allows for silent operation while maintaining consistent transfer rates during intensive tasks such as disk imaging or data capture.

Compact and Durable

The USB4 NVMe Enclosure's compact footprint fits comfortably in a technician's toolkit or laptop bag. The rugged aluminum housing not only helps with heat dissipation but also protects the SSD from physical damage during transport or deployment in demanding environments.

Download datasheet (PDF)Manufacturer product page
