StarTech.com · IMJP4330

StarTech Wi-Fi 6E PCIe Network Card, AX5400 802.11ax, Tri-Band, Bluetooth 5.3

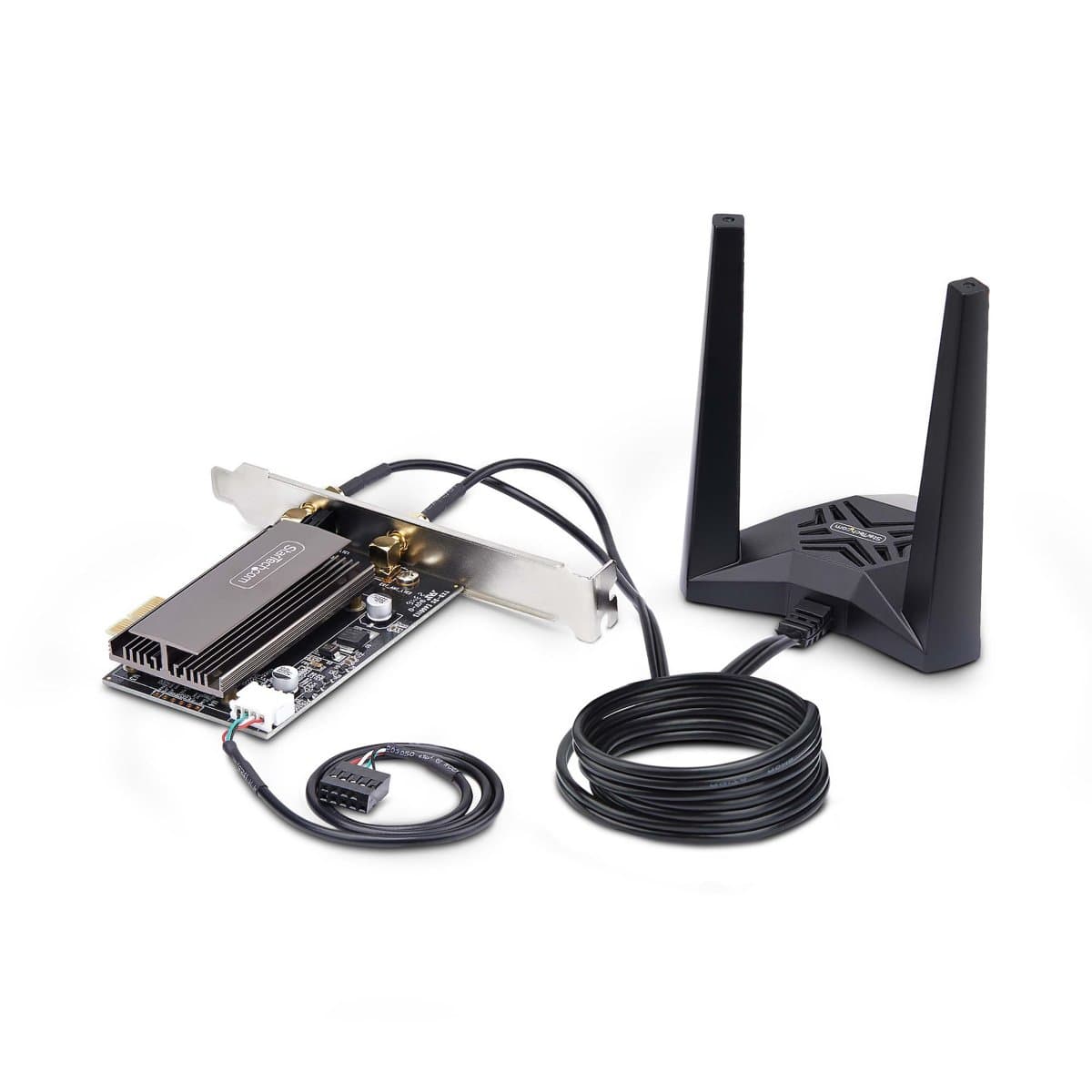

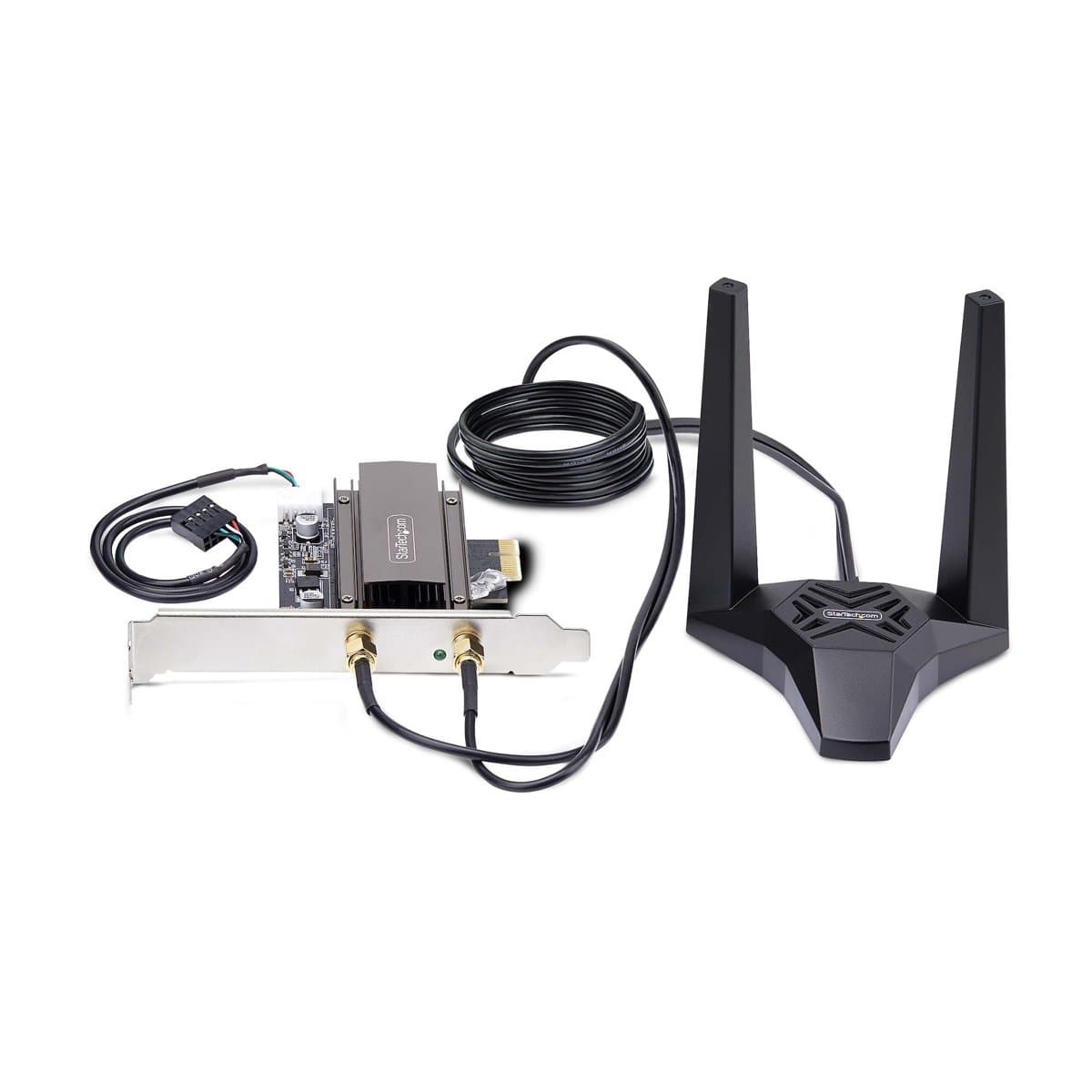

StarTech.com Wi-Fi 6E PCIe Network Card with Bluetooth 5.3, Magnetic Antenna Base with 3.6ft Cables, Tri-Band 802.11ax, AX5400 WiFi NIC, Windows/Linux - PCI Express Wi-Fi Card for PC, Internal, Wireless, PCI, WLAN / Bluetooth, 2400 Mbit/s, Black

WIFI 6E NETWORK CARD: Add Wi-Fi 6E capability to a desktop, enabling high-speed low-latency wireless communication with reduced interference and less congestion in the 6GHz band (up to 2400Mbps)
COMPATIBILITY: PCIe 3.0 Wi-Fi Card is backwards compatible with 802.11a/b/g/n/ac standards on 5Ghz (2402Mbps) and 2.4Ghz (574Mbps) bands; Low-profile bracket included for small form-factor systems; NOTE: Windows 10 does not support the 6Ghz band
ANTENNA BASE: Included freestanding magnetic base with 3.6ft attached cable enables flexible placement of the antennas, allowing for optimal signal reception and reduced interference; Features a rubber base for grip when used on non-metallic surfaces
BLUETOOTH 5.3: Enables fast data transfer (2Mbps) with extended range, improved connection stability, and lower power consumption; Included USB header cable must connect to an available 9-Pin USB 2.0 header on the motherboard for Bluetooth functionality
SECURE & RELIABLE: OFDMA and MU-MIMO boost network performance by reducing latency and enhancing data transfer efficiency; WPA3/WPA2 enhance the security of personal password protection; Metal heatsink aids heat dissipation for optimal performance

In stock · 476 units · Ships tomorrow

◇ Shipping calculated at checkout

↩ 30-day returns · no questions asked

⊡ Sourced via Ingram Micro · ships from US distribution

About this product

Add 802.11ax Wi-Fi connectivity to a computer or server through a PCI Express slot - with tri-band 6/5/2.4GHz frequencies

This Wi-Fi 6E Network Card enhances desktop capabilities, enabling high-speed low-latency wireless communication with reduced interference and less congestion in the 6GHz band, with speeds of up to 2400Mbps.

Tri-Band Wireless

The PCIe 3.0 Wi-Fi card is backwards compatible with 802.11b/a/g/n/ac standards on both the 5GHz (2400Mbps) and 2.4GHz (574Mbps) bands. It includes a low-profile bracket for small form-factor systems. The Wireless Network Adapter is supported on both Windows* and Linux operating systems.

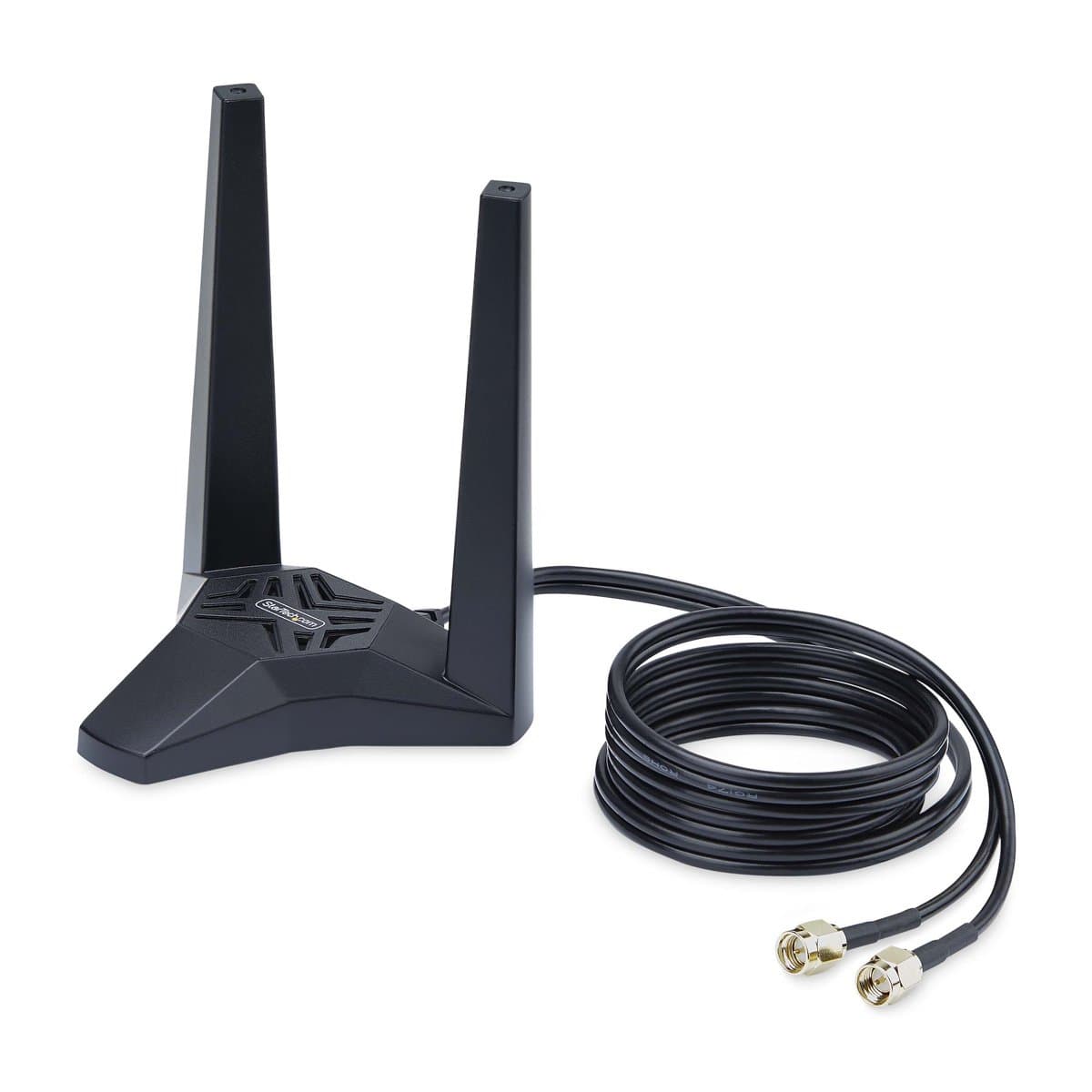

Magnetized Antenna Base

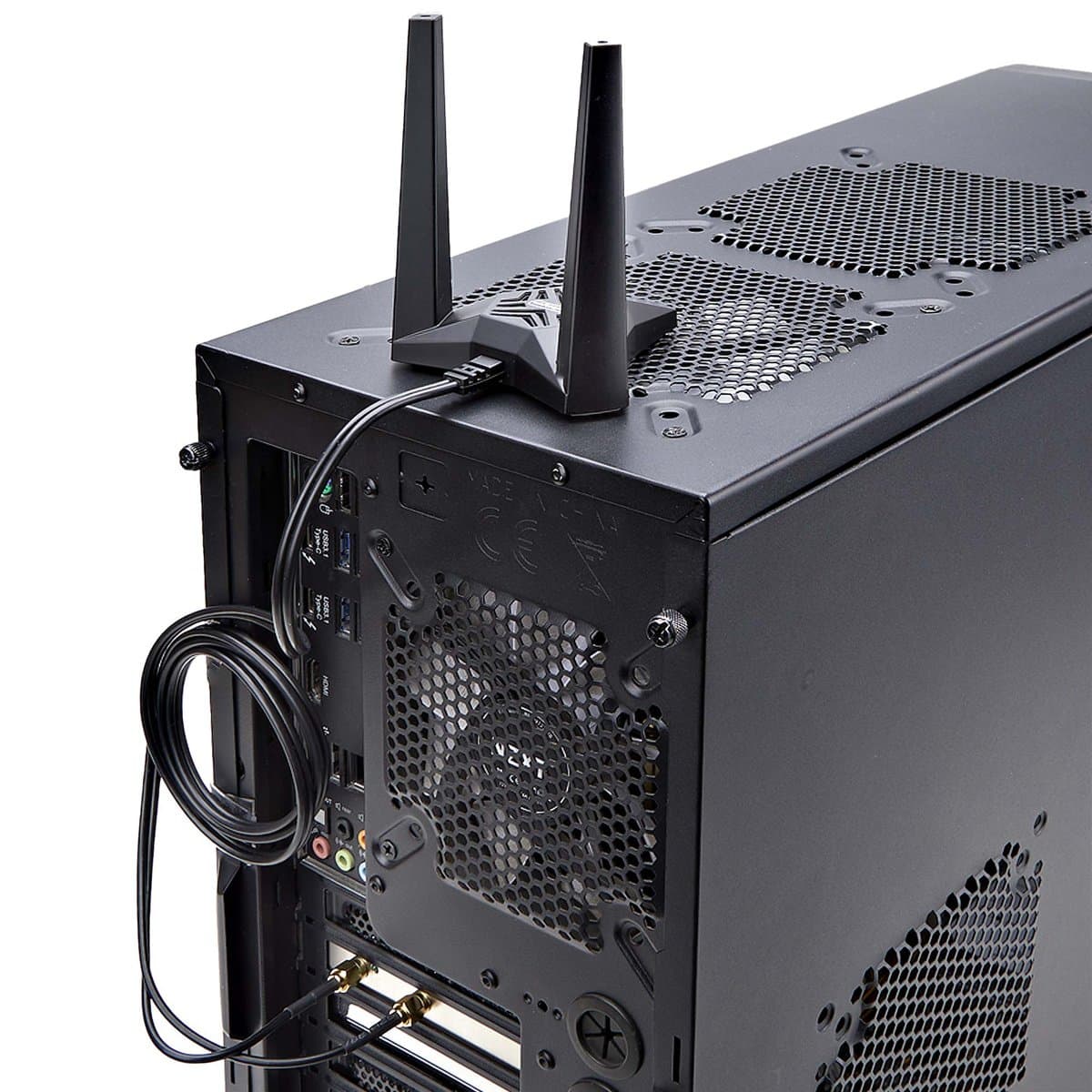

The antenna base is magnetized and equipped with a 3.6ft attached cable, allowing for flexible antenna placement, optimizing signal reception and minimizing interference. In addition, the base of the antenna is covered in rubber to enhance grip when placed on level non-metallic surfaces.

Bluetooth Connectivity

This card features Bluetooth 5.3, enabling fast data transfers at 2Mbps, and offering an extended range, improved connection stability, and lower power consumption. To enable Bluetooth functionality, connect the 4-Pin IDC to 9-Pin USB Header (Bluetooth Cable - Included) to an available 9-Pin USB Header, located on the motherboard of the Host Computer.

Secure and Reliable

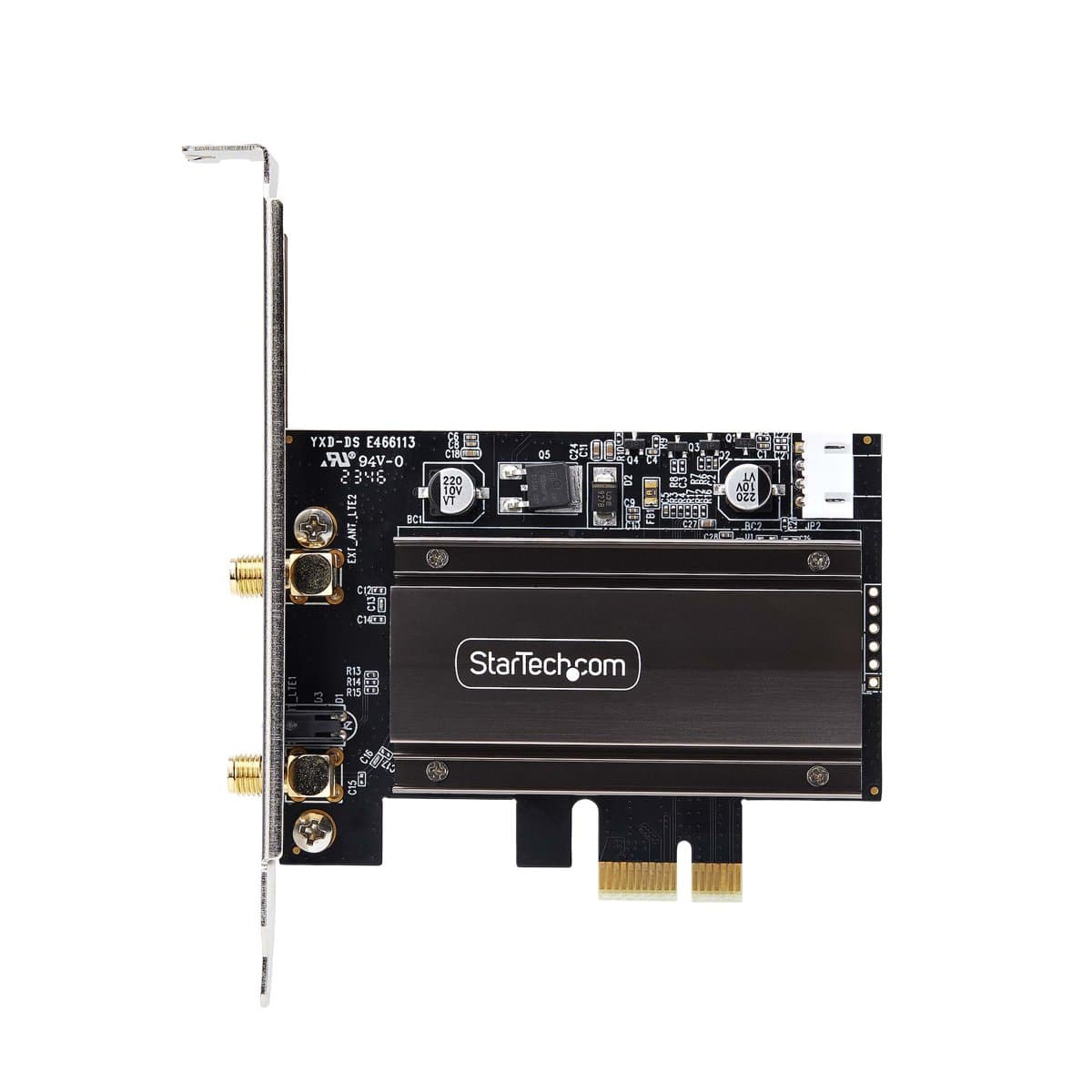

WPA3 offers secure encryption for Wi-Fi password safety. OFDMA and MU-MIMO features improve network performance, reducing latency and enhancing data transfer efficiency. The all-metal aluminum heatsink dissipates excessive heat to maintain optimal performance.

*Windows 10 does not support the 6Ghz band
