StarTech.com · IMPG5607

StarTech 10/100 Fiber Media Converter, Single Mode, SC, 20 km, WDM

$190

StarTech.com 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km, 200 Mbit/s, 100Base-TX, 10Base-T, 100Base-FX, IEEE 802.3, IEEE 802.3u, Fast Ethernet, 10,100 Mbit/s

  • Wired
  • 200 Mbit/s 20000 m 1310 nm

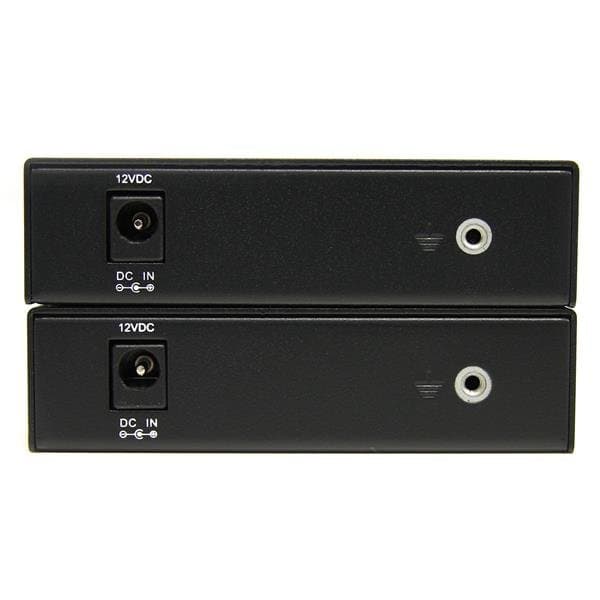

  • Ethernet LAN (RJ-45) ports: 1 DC-in jack
  • Single-mode Fiber ports quantity: 1 SC
  • Black
In stock · 110 units · Ships tomorrow
Shipping calculated at checkout
30-day returns · no questions asked
Sourced via Ingram Micro · ships from US distribution

About this product

Convert and extend a 10/100 Mbps Ethernet connection up to 12.4 miles/20 km over a single mode SC fiber cable
The ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km (12.4 mi).
The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling.

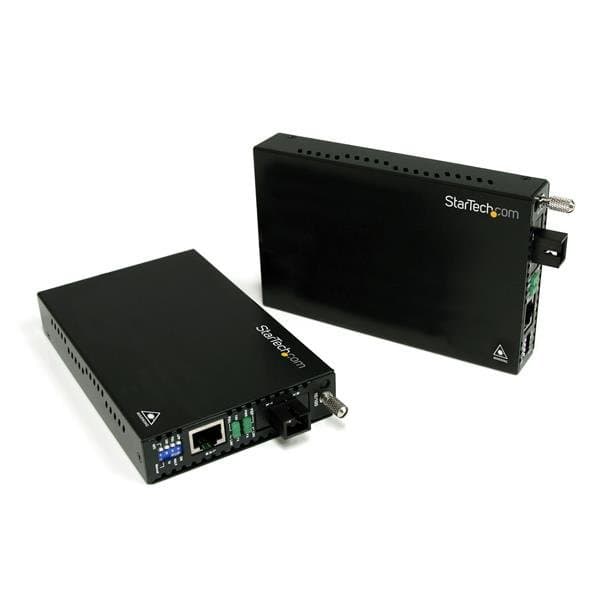

The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

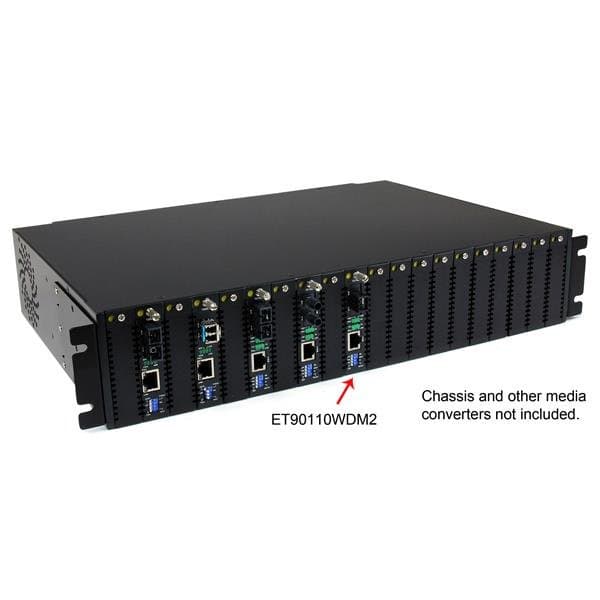

For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Wavelength Division Multiplexing (WDM) fiber cuts cabling costs in half, or doubles existing network speed/capacity using pre-existing cables
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
Download datasheet (PDF)Manufacturer product page

Specifications

Connectivity

Connector Type
SC

Network

Maximum Distance
20 km km

Optical

Fiber Mode
Single Mode
Technology
WDM
Wavelength
1310 nm nm

Performance

Speed
10/100 Mbps Mbps

Product details

Brand
StarTech.com
Vendor
StarTech.com
Ingram Part Number
PG5607
UPC
0065030846271
MSRP
$149
Stock
110 units
