StarTech.com · IM2NZ534

StarTech 2NZ534, Gigabit Ethernet SC Fiber Media Converter, 10 km, 1310 nm

$120

StarTech.com Single-Mode (SM) SC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to SC Fiber Converter, 1310nm, 10km - TAA, 1000 Mbit/s, 10Base-T, 100Base-TX, 1000Base-T, 100Base-LX, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, Fast…

  • <b>Extend Ethernet Over Distances</b>: Convert and extend a 10/100/1000 Mbps Ethernet signal to Gigabit single-mode SC fiber, up to 10km (6.2 mi); For specialized edge, industrial / remote deployments requiring long-range, secure wired connectivity
  • <b>Compact and Durable</b>: Media converter installs almost anywhere with little to no configuration; Also mounts in the MCM7-MEDIA-CHASSIS or MCM15-MEDIA-CHASSIS for clean, professional integration into structured data centers, or server rooms; TAA compliant
  • <b>Reliable Performance Across Mixed Speeds</b>: Supports IEEE 802.3 standards, Jumbo Frames (up to 9K), full-duplex flow control, auto-negotiation, and auto MDI/MDI-X; Delivers plug-and-play setup and reduced packet loss across legacy and high-speed links

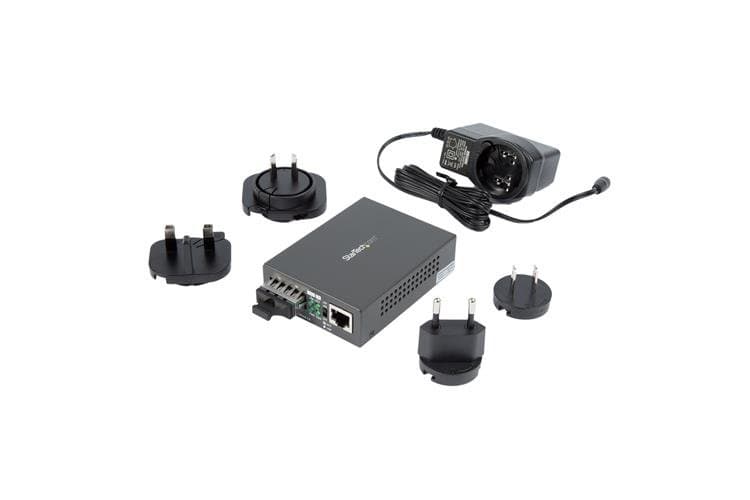

  • <b>Deploy Efficiently in Compact, Power-Sensitive Spaces</b>: Consumes only 3.75W (typical) via 5V DC input from included power adapter or chassis power supply and rated for 0°C to 50°C operating environments; Does not support PoE
  • <b>The IT Pro's Choice</b>: Designed for reliability in edge and on-prem deployments, our media converters are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
In stock · 1,285 units · Ships tomorrow
Shipping calculated at checkout
30-day returns · no questions asked
Sourced via Ingram Micro · ships from US distribution

About this product

Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiber

This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.

Extend your GbE network cost-effectively

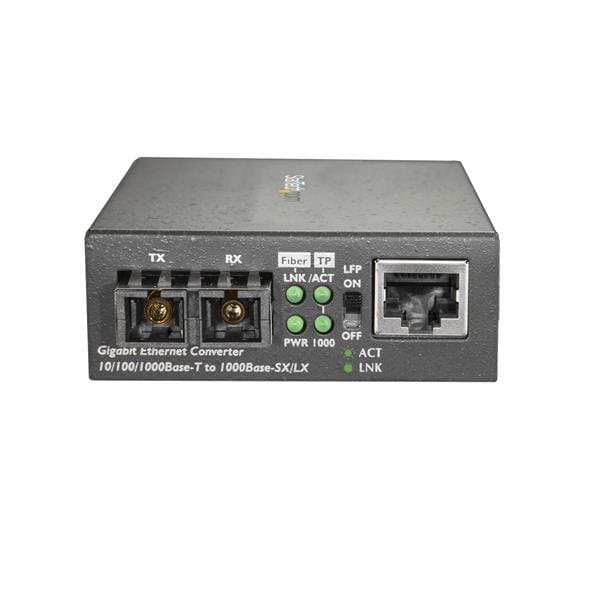

The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
Download datasheet (PDF)Manufacturer product page

Specifications

Connectivity

Connector Type
SC

Optical

Max Distance
10 km km
Wavelength
1310 nm nm
Fiber Mode
Single-mode

Performance

Data Transfer Rate
1000 Mbps Mbps

Power

Input Voltage
100–240 V V
Output Voltage
5 V V

Product details

Brand
StarTech.com
Vendor
StarTech.com
Ingram Part Number
2NZ534
UPC
0065030878241
MSRP
$101
Stock
1,285 units
