StarTech.com · IM8PL684

StarTech USB-C/USB-A Hybrid Dock, Dual 4K 60 Hz HDMI/DP, 6× USB-A, GbE, Black/Grey

$121

StarTech.com USB-C USB-A Dock - Hybrid Universal USB 3.0 Docking Station for USB-C or USB-A Laptop - Dual Monitor 4K 60Hz HDMI/DisplayPort - 6x USB-A, GbE - USB 3.1/3.2 Gen 1 - Windows/Mac, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-B, 100,1000 Mbit/s, Black, Grey, 5 Gbit/s, 3840 x 21…

  • LATEST MODEL: This USB-C USB-A dock offers the same functionality as DK30A2DH, with added flexibility of horizontal or vertical orientation using the included stand to save space at your workstation
  • HYBRID DOCK: Universal USB 3.0 docking station works w/ USB-C & USB-A laptops/computers and features a 6-Port USB Type-A hub, Gigabit Ethernet & headset audio jack; NOTE: This dock does not provide USB-C Power Delivery to charge your laptop
  • FLEXIBLE DUAL MONITOR VIDEO: This 4K 60Hz USB-C or USB-A docking station can connect up to 2 monitors: Dual DisplayPort or Dual HDMI or DP + HDMI displays; supports dual extended displays on MacBooks with both the Intel processor or Apple M1/M2 chip
  • 6 DOWNSTREAM USB-A PORTS: Hybrid USB C dock has a 6-port USB 3.1/3.2 Gen 1 (5Gbps) hub w/ extra USB-A ports to support devices such as keyboard, mouse, flash drive, external hard drive & printer
  • COMPATIBILITY: USB-C port replicator is DisplayLink Certified for max. performance & compatible w/ Dell, HP, Lenovo & MacBook PCs; Windows, ChromeOS and macOS platforms, where mixed laptop Brands used; Includes USB-C and USB-A host cables
  • CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities
In stock · 25 units · Ships tomorrow
Shipping calculated at checkout
30-day returns · no questions asked
Sourced via Ingram Micro · ships from US distribution

About this product

Universal Hybrid Dock | USB Type-C & USB Type-A | Dual 4K 60Hz HDMI & DisplayPort

Transition from the legacy USB-A (USB 3.1/3.0) to newer USB-C laptops with this universal laptop docking station for USB-C and USB-A laptops. The USB 3.1 Gen 1 (5 Gbps) Type-C dock features dual HDMI and/or DisplayPort monitors, six USB Type-A downstream peripheral ports, and headset audio.

Flexible Monitor Connections

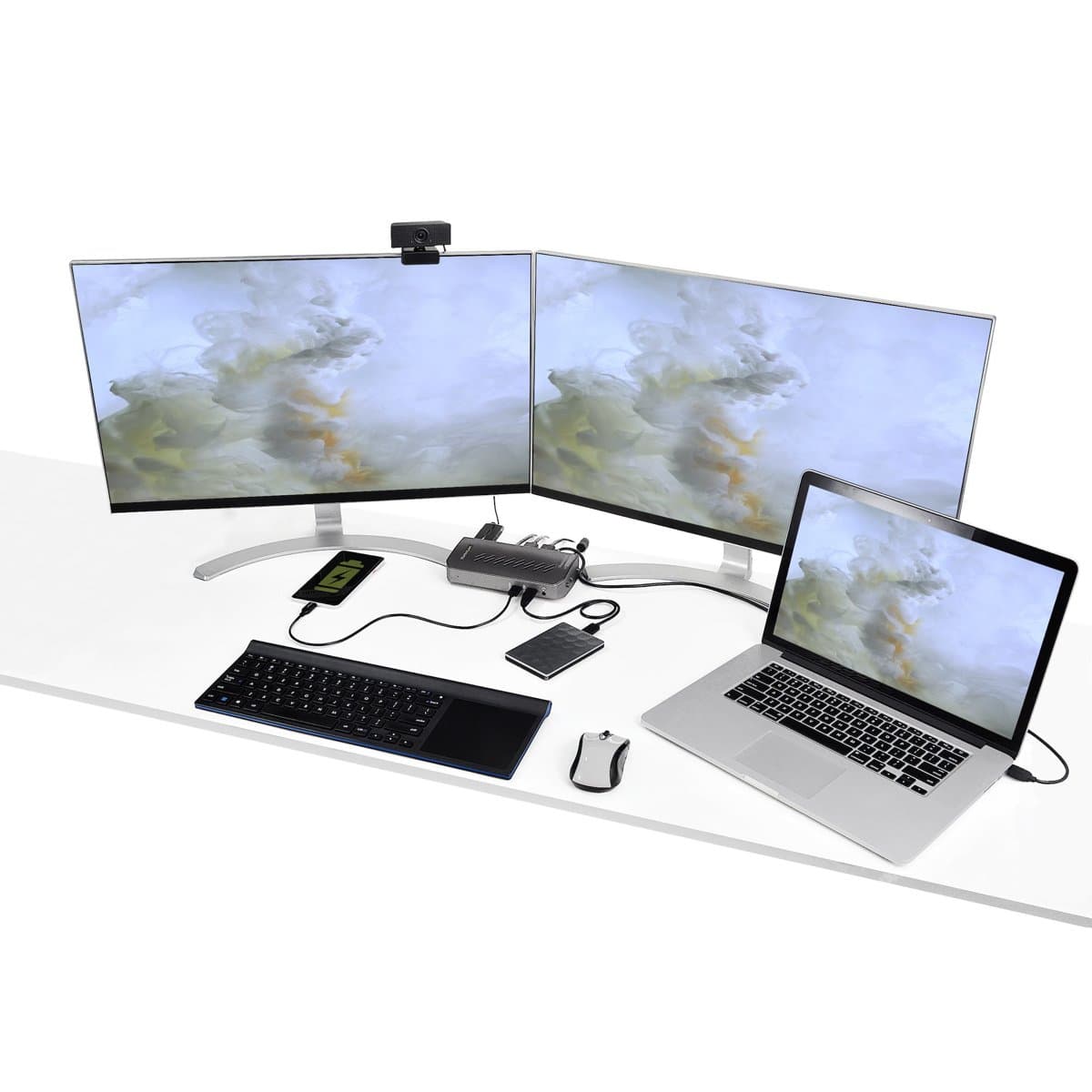

This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.



Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz



Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz



Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz



Single 5K DisplayPort * | Up to 5120 × 2880

*Requires monitor support for 5K using two DP ports

Certified for Maximum Compatibility & Performance

This docking station is fully certified to meet top industry standards for DisplayLink (video connections) certification to guarantee the highest quality, performance, and compatibility.

Flexible Setup Options

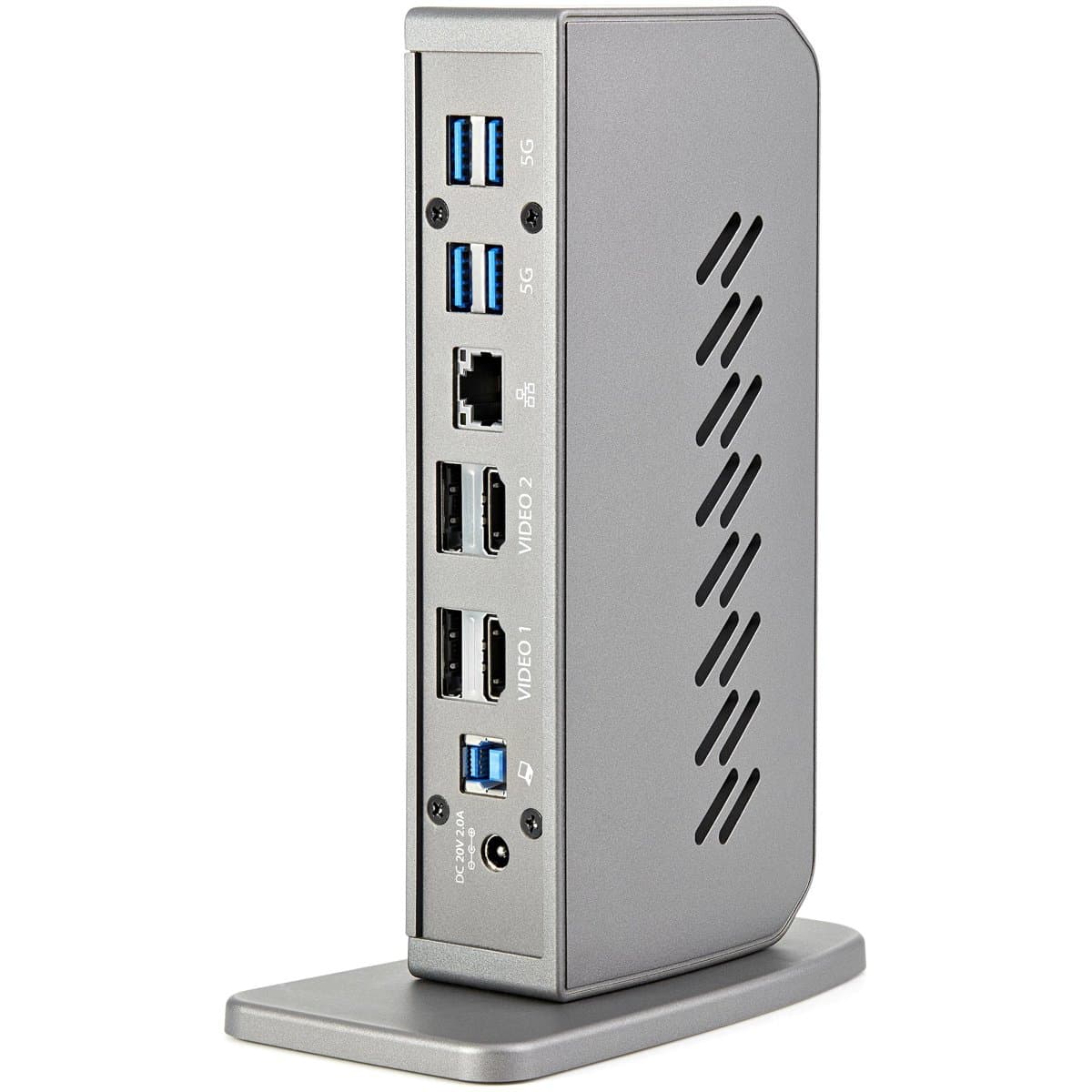

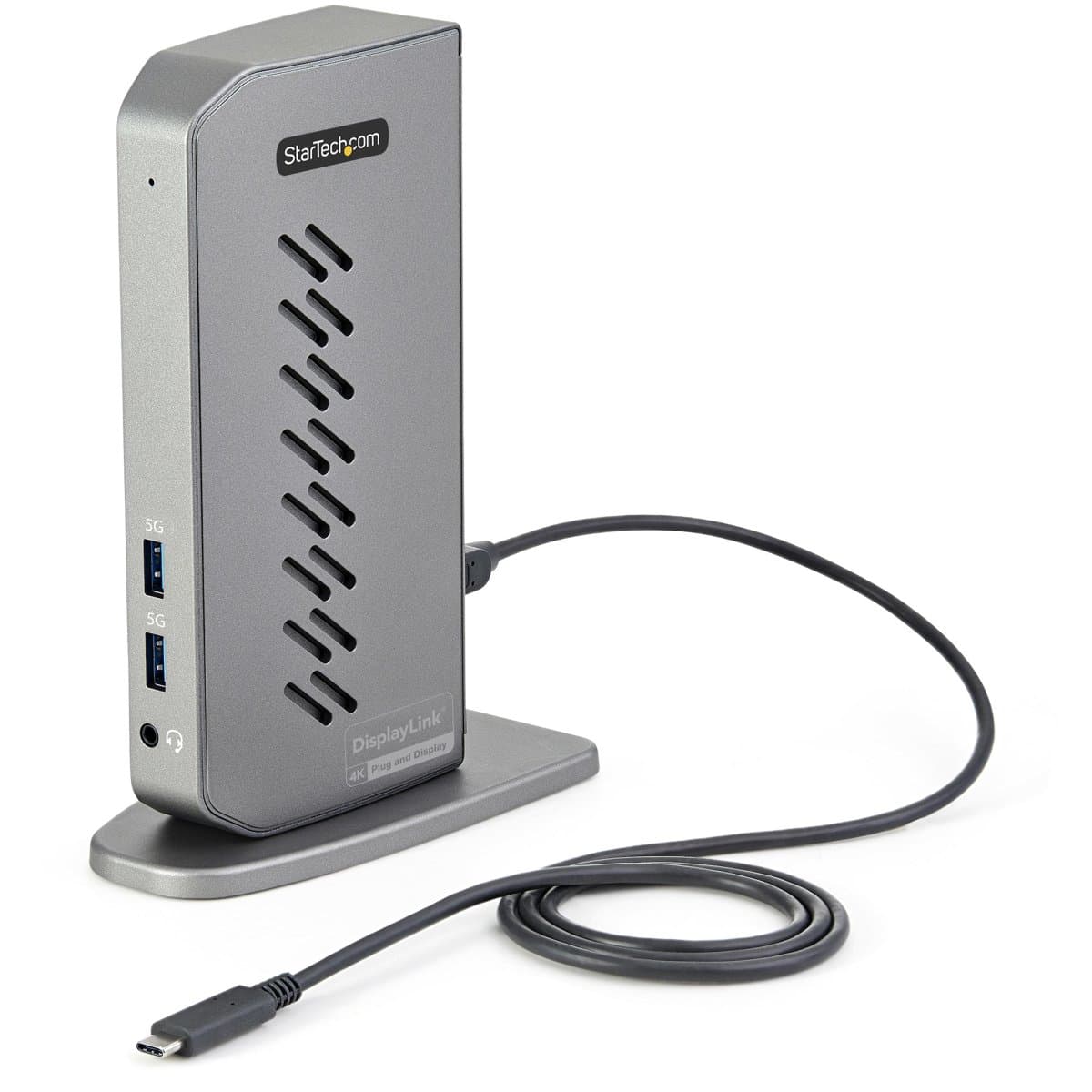

For fast setup right out of the box, the two included host cables (USB-C and USB-A) connect to any laptop. The included dock stand lets you position the dock vertically to save space or lay flat on the desk.

The Connections You Need

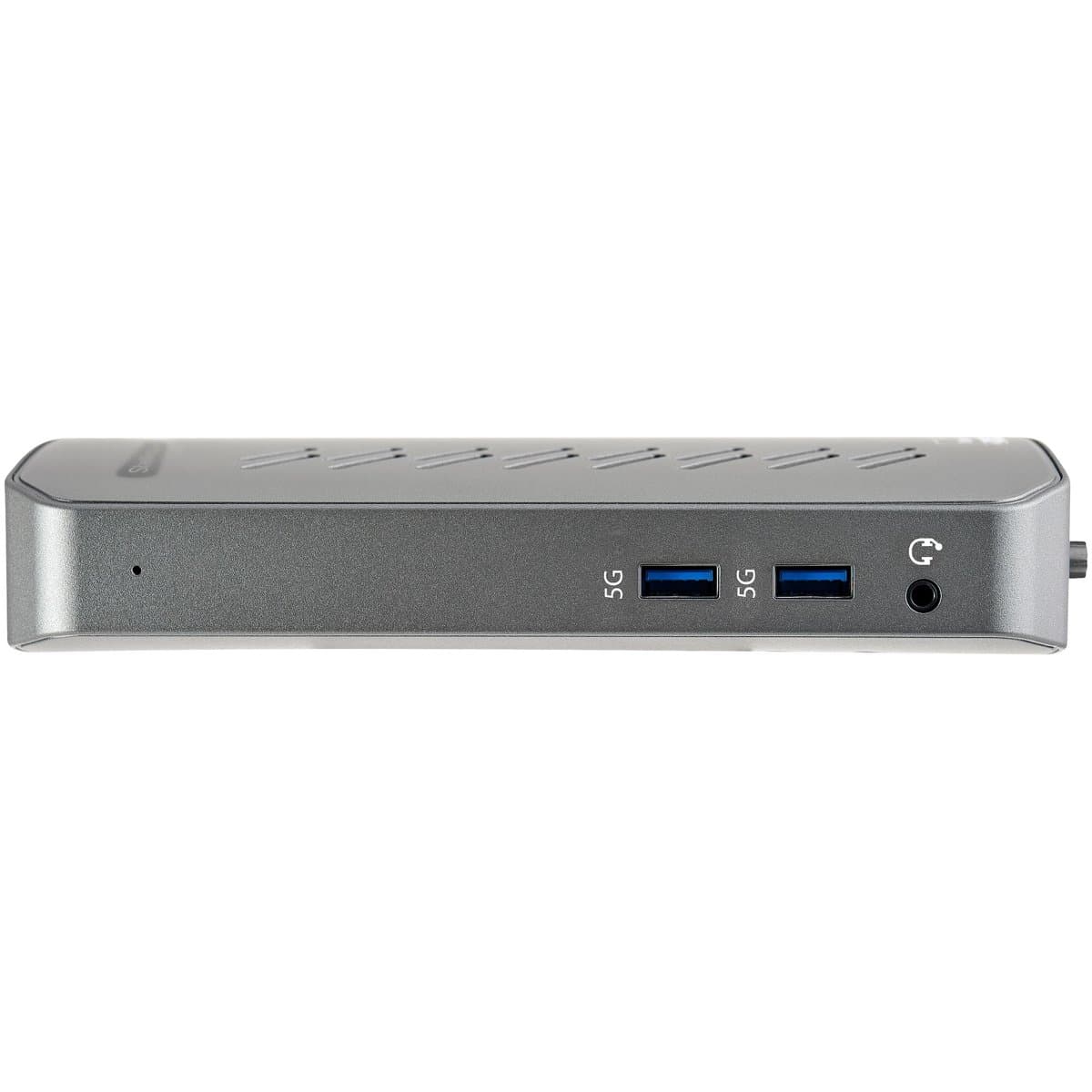

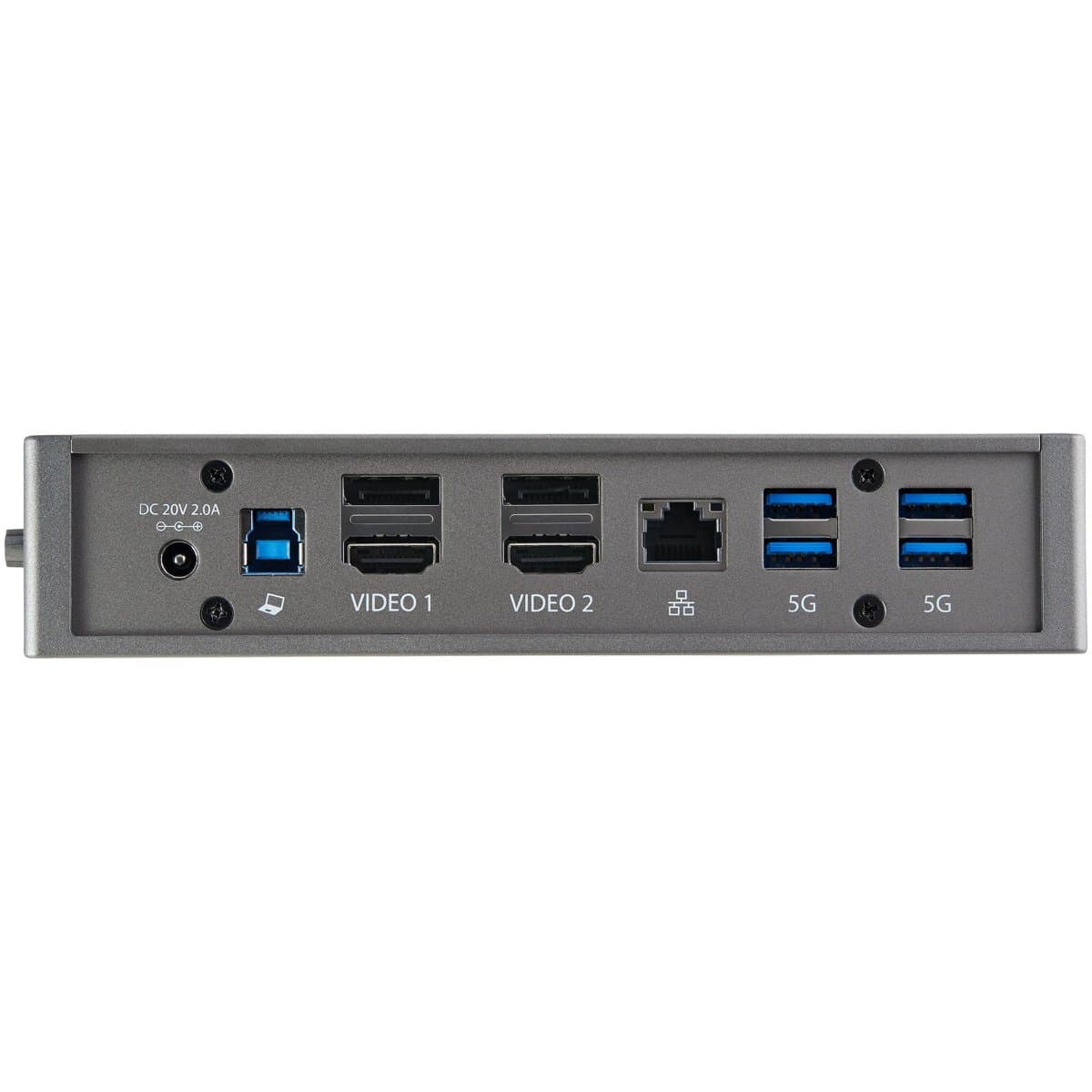

Connect your devices with six downstream USB Type-A (USB 3.0 5 Gbps) ports, two positioned on the front, and four on the back. The dock provides a GbE port and a 3.5 mm 4-position headset audio jack.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:



Advanced Windows Layout Utility : To setup and save custom windows layouts.



Mac Address Pass-Through Utility : To improve network security.



USB Event Monitoring Utility : To track and log connected USB devices



Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The IT Pro's Choice Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

DK30A2DHU is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage
Download datasheet (PDF)Manufacturer product page

Specifications

Audio

Audio
3.5 mm headset jack

Compatibility

Operating System
Windows, macOS, ChromeOS

Connectivity

Host Interface
USB-C 3.2 Gen 1 or USB-A 3.2 Gen 1 (both cables included)
USB Hub
6× USB-A 3.2 Gen 1 (5 Gbps)

Network

Ethernet
Gigabit (10/100/1000)

Physical

Orientation
Horizontal or vertical (stand included)
Color
Black/Grey

Power

Power
External AC adapter (no USB-C PD to host)

Video

Video Outputs
Dual 4K @ 60 Hz via HDMI and/or DisplayPort
Technology
DisplayLink Certified

Product details

Brand
StarTech.com
Vendor
StarTech.com
Ingram Part Number
8PL684
UPC
0065030891349
MSRP
$101
Stock
25 units
